Your door: R-10.25 · 8' x 7' · Natural Oak · None (Flush)
Garage Doors

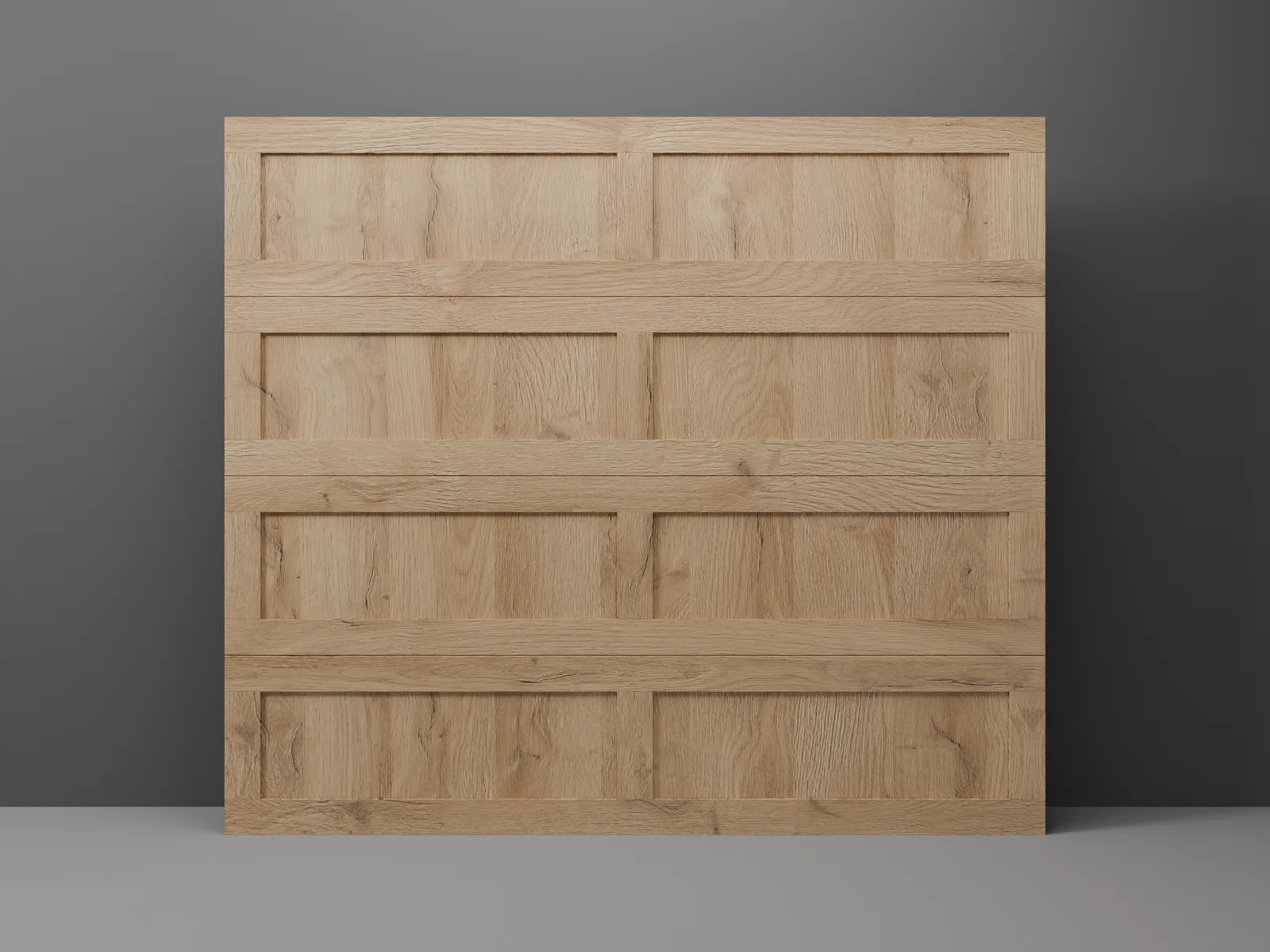

Quadra by Modern Decor - Traditional Steel Garage Door (Colors Match Entry Doors)
Modern Decor Quadra — the traditional stile-and-rail garage door, rebuilt in European woodgrain steel with dark-tint glass. Insulated to R-10.25 or R-17.65. Colors match our steel entry doors. Designed and sold by Modern Decor Supply across New Jersey and the surrounding region.
Need a different size? We build to your opening, to the inch — other widths (10, 12, 14 and 18 ft) and heights (6′6″, 6′9″ and more) are available to order; ask for a quote.
How to measure
Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.
Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).
Enter your headroom to see which tracks fit.
Financing available through Synchrony Bank · Promotional/sale-priced items are not eligible for financing. Learn more →
The Quadra is the familiar raised-panel shape with none of the nostalgia: real stile-and-rail framing, recessed flat panels, and vertical grain running the stiles against horizontal grain on the rails.
- Construction: 3-layer insulated steel base, re-skinned in Erkado woodgrain steel
- Insulation: R-10.25 or R-17.65
- Colors: Natural Oak, Walnut, Swamp Oak, Black
- Glazing: none, top section, second from top, or all four sections — all dark tint
- Sizes: 8x7, 8x8, 9x7, 9x8, 16x7, 16x8
Sold and installed by Modern Decor Supply — installation available.
Doors over 9 ft wide have a vertical seam. Steel skins come in sheets up to 9 ft wide, so a wider door is skinned in more than one sheet. When possible we place seams on a clean break in the design, such as a glass column or a panel line. Seams are subtle but visible, and they are part of the door and of the price shown.
This door is a finished insulated steel sectional door with one more layer on its face. The layer is what you see; the door underneath is a complete door.
The door underneath
- R-10.25 — steel, an expanded polystyrene core, steel.
- R-17.65 — steel, an injected polyurethane core, steel.
A steel sheet skin on top
On these doors one more layer goes onto the face of the base door: a steel sheet skin, cut and folded to the design.
The door underneath is unchanged. The skin is what you see and what carries the colour, which is why these garage doors can be ordered in the same woodgrain finishes as our steel entry doors.
Where the design has glass, the opening goes through the skin and through the door behind it.
Placeholder diagram
Quadra
The familiar raised-panel shape with none of the nostalgia: real stile-and-rail framing with recessed flat panels, and vertical grain running the stiles against horizontal grain on the rails.
What you choose
- Glazing: none (flush), the top section, the second section from the top, or all four sections — all dark tint.
- Insulation: R-10.25 or R-17.65.
- Color: Natural Oak, Walnut, Swamp Oak or Black.
- Size: 8×7, 8×8, 9×7, 9×8, 16×7 or 16×8.
Construction, insulation, glass and the 9-ft skin rule are in the Construction & Materials tab.
How this door is built
A three-layer insulated steel sectional door, skinned by us in European woodgrain steel (on the Duet and the Wood Band, in the field the composite leaves open) — the same 0.6 mm overlay steel, in the same finishes, as our European steel entry doors. That is the point of the line: the garage door and the front door can be ordered in one finish and read as one elevation.
Insulation and sections
- Insulation: R-10.25 or R-17.65.
- Sections: four per door — 21″ on a 7-ft door, 24″ on an 8-ft door.
Colors
Natural Oak, Walnut, Swamp Oak and Black — matched to our steel entry doors.
Glass
The Duet and the Wood Band carry no glass at all. Everywhere else on these lines glazing is dark tint throughout. The glass is never sunk below the steel: on a flush design the pane sits marginally proud of the skin, and on a framed design it is held behind the frame face like a window. Where two lites meet you will see a fine joint line rather than one continuous sheet.
Doors wider than 9 feet
Our steel skins come up to 9 ft wide, so a 16-ft door carries a vertical seam in the skin. It is placed deliberately — at a glass edge or another natural break in the design — never dropped into the middle of a plain field.
Sizes
8×7, 8×8, 9×7, 9×8, 16×7 and 16×8.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.
Below are specifications of all Garage Door Motor Options
LM L979M WIRELESS KEYPAD MAX:
- Compatible with most major brands of Garage Door Openers manufactured after January 1997.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (PIN codes, set schedules, notifications, access history and battery status) with Security+ 3.0 Garage Door Openers.
- Users can program temporary PIN codes for friends and service people.
- Closes the Garage Door instantly with one press activation
LM 878 Max Wireless Keypad
- Features Security+ 2.0® rolling code technology
- One-button-to-close feature (works with all LiftMaster garage door openers manufactured since 2006)
- Temporary password option, Program code directly from keypad
- Backlit keypad, Includes 9V battery
- Compatible with all LiftMaster garage door openers manufactured since January 1993
KSWKP WIRELESS KEYPAD KWIKSET
- Compatible with Kwikset FLEX openers
- Open or close the garage door without using a remote
- Includes 9V battery
LM 893 Max 3-Button Remote Control
- Controls up to three garage door openers, gates or myQ® enabled light devices
- Features Security+2.0 rolling code technology
- Compatible with all LiftMaster garage door openers manufactured since January 1993, and all 315MHz LiftMaster and ELITE gate operators
LM L932M 2 BUTTON KEYCHAIN MAX
- Compatible with up to three Garage Door Openers, Gate Operators, or Commercial Door Operators manufactured by LiftMaster after 1997.
- Extra-long range for extended reach and reliable operation.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (naming, notifications and access history) with Security+ 3.0 and Security+ 2.0 Garage Door Openers.
- Fits on a keychain, backpack or in a purse or pocket
KSTX3 FLEX REMOTE 3 BUTTON
- Compatible with Kwikset FLEX openers
- Controls up to three Garage doors
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
KSTX1 FLEX REMOTE 1 BUTTON
- Compatible with Kwikset FLEX openers
- Controls one garage door
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
Installation
Every Modern Decor garage door can be installed by our own crews. Installation is quoted separately and is never included in a listed price — the price on this page is for the door as configured, and your written quote itemises the rest.
Sold and installed by Modern Decor Supply LLC, NJ Home Improvement Contractor Reg. #13VH13488900, from our Hackensack, NJ showroom — serving New Jersey, New York, Pennsylvania and Connecticut.
Before you order
- Measure the opening, not the old door. The How to Measure Garage Opening tab shows exactly what to measure.
- Check your headroom and jambs. Track and headroom options — standard radius, low-headroom, high-lift, vertical-lift and follow-the-roof-pitch — are chosen in the configurator above, and each option states the headroom it needs.
- Decide on the opener while you are there: motors, keypads and remotes are all quoted with the door.
Lead time
These doors are made to order. The production time for your exact configuration is confirmed in writing with your quote — ask us and we will tell you what we are running the week you order, rather than publishing a number that drifts.
