Aluminium pivot doors · Eko-Okna

A door that turns, not swings.

Move the hinge off the jamb and put it inside the leaf, and a door stops being a door and becomes an opening. That is a pivot: a single slab of aluminium up to thirteen feet tall, hung on a concealed axis, that swings clear of the passage instead of eating it.

An all-glass pivot leaf is possible as a custom configuration — a pivot system with a glass filling instead of a panel; ask us and we will quote it.

Quoted to your opening every door is measured, then quoted with its delivery, installation and sales tax

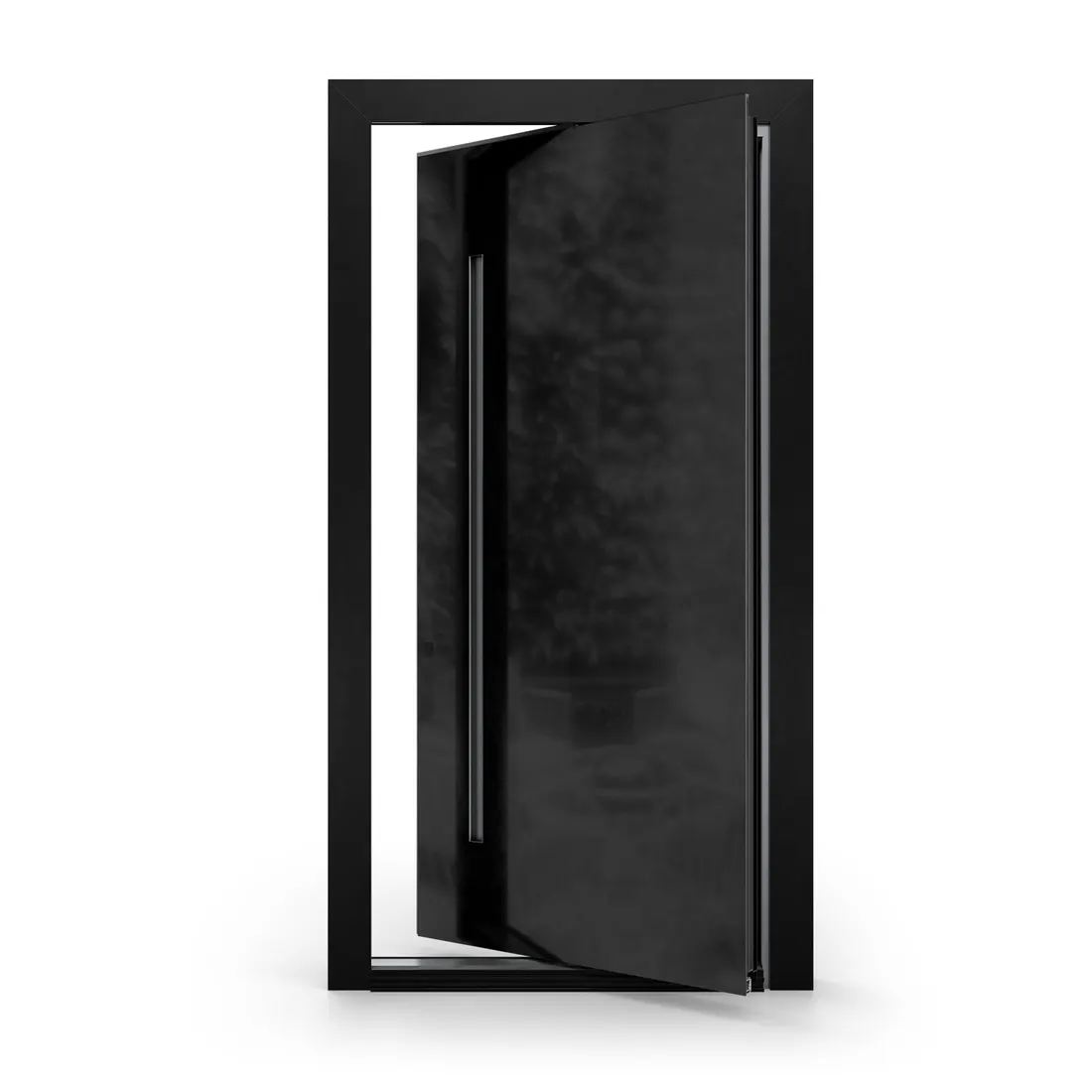

PL09 Glass Elegance aluminium pivot door shown mid-swing on its offset axis
13' 1"tallest single leaf
1,102 lbmaximum leaf weight
121designs for a pivot leaf
RAL K7any colour, plus custom powder

Why a pivot costs what it costs

The hardware carries the whole door

A hinged door hands its weight to three butts screwed into a jamb. A pivot hands it to one floor spindle and one head pin, and those have to take up to 1,102 lb and still shut on a gasket line. That hardware, and the floor prep it needs, is most of the difference in price.

The leaf is a structure, not a slab

At three metres tall an aluminium leaf wants to twist. These are built on 77–80 mm thermally broken profiles with a reinforced perimeter so the door stays flat and the reveal stays even top to bottom — which is the only reason a shadow gap this fine is possible at all.

Nothing about it is a stock size

Every door here is made to your opening, in your colour, with your handle and your access control. There is no catalogue price because there is no catalogue door — which is why this page ends in a conversation rather than an Add to Cart.

The systems

Four pivot platforms

The system is the aluminium the door is built from — it sets how tall and how heavy the leaf can go, how it seals, and how it drains. Drag any section to turn it.

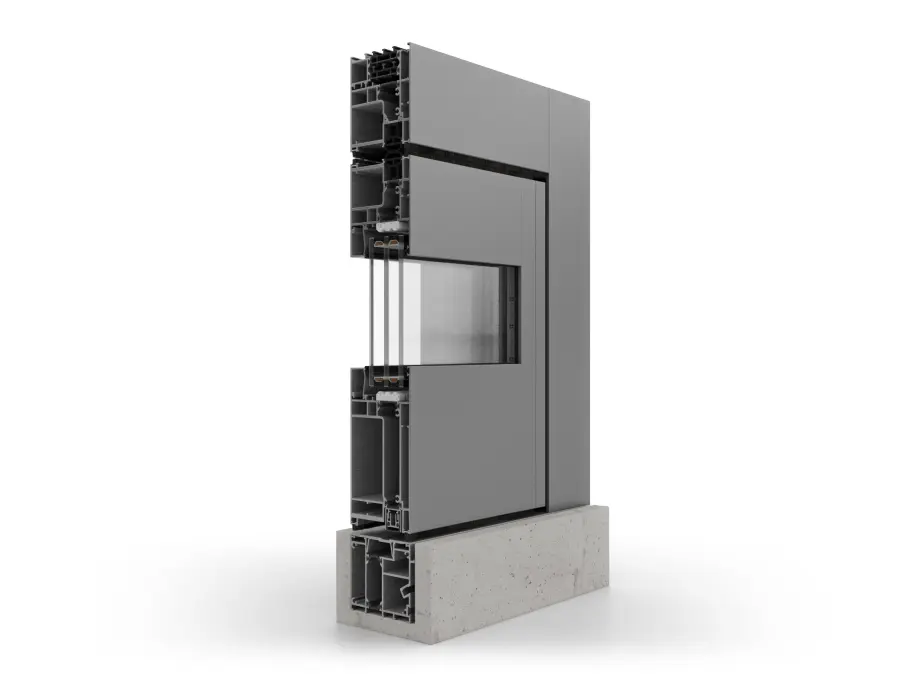

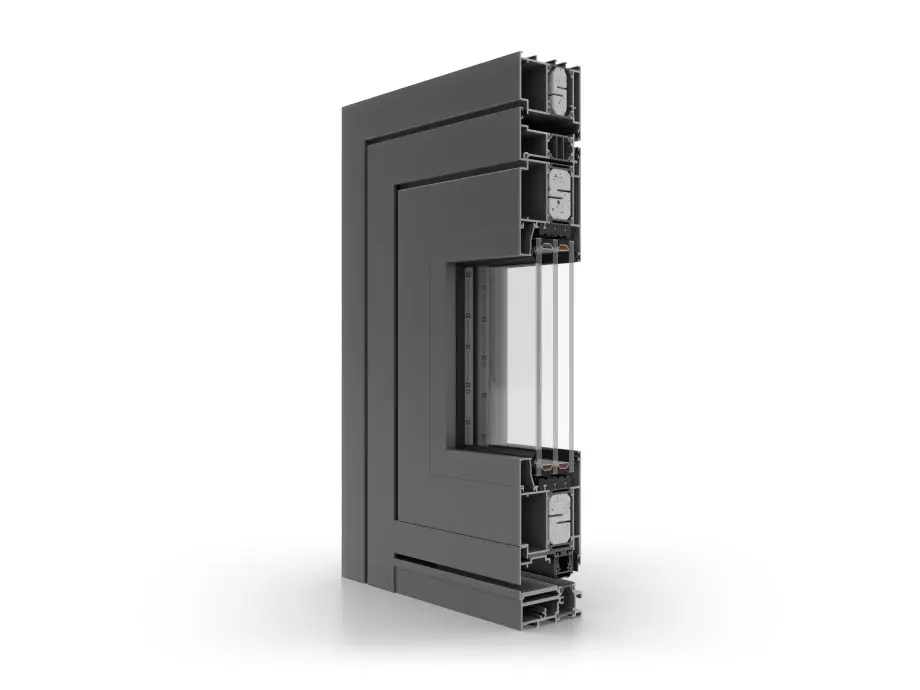

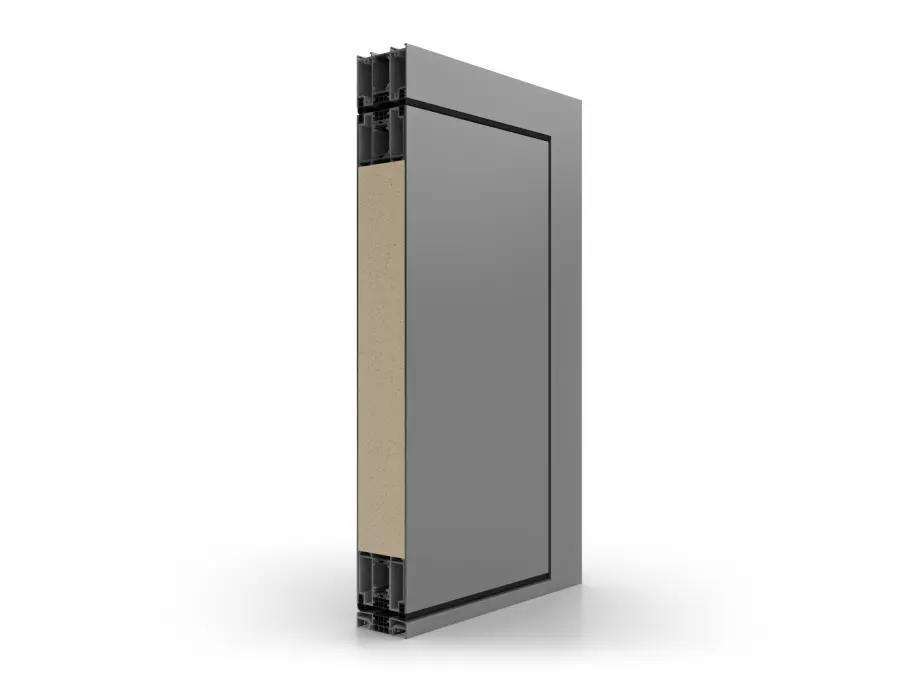

MasterLine 8 Pivot — cutaway section through the frame, sash, thermal break and glazing

360° section through the frame, sash, thermal break and glazing unit.

Aluprof MasterLine 8 Pivot

MasterLine 8 Pivot

The reference pivot — up to 9'10" tall, 200 kg of leaf on a hidden axis.

Aluminium pivot doors on the MasterLine 8 system: an impressive door with an offset pivot axis that opens a wide, comfortable passage, and multi-point locking with optional access control behind it.

  • Offset pivot axis — the leaf swings clear of the opening instead of eating it
  • Multi-point locking, with keyless/access-control options
  • Takes a Pivot Line panel or a full glazed sash
MasterLine 8 Pivot specifications
Installation depth (frame & sash)3" (77 mm)
Glass thickness in sash3/8"–2-7/16" (10–62 mm)
Maximum sash height9' 10" (3000 mm)
Maximum sash width5' 11" (1800 mm)
Maximum sash weight441 lb (200 kg)
FinishFull RAL K7 palette; custom powder codes on request

What the leaf can be filled with

The ranges Eko-Okna list for this system. Each keeps its own size limits — a panel is never built past its own maximum, however large the leaf is allowed to be.

Specifications published by the manufacturer · Eko-Okna product page ↗

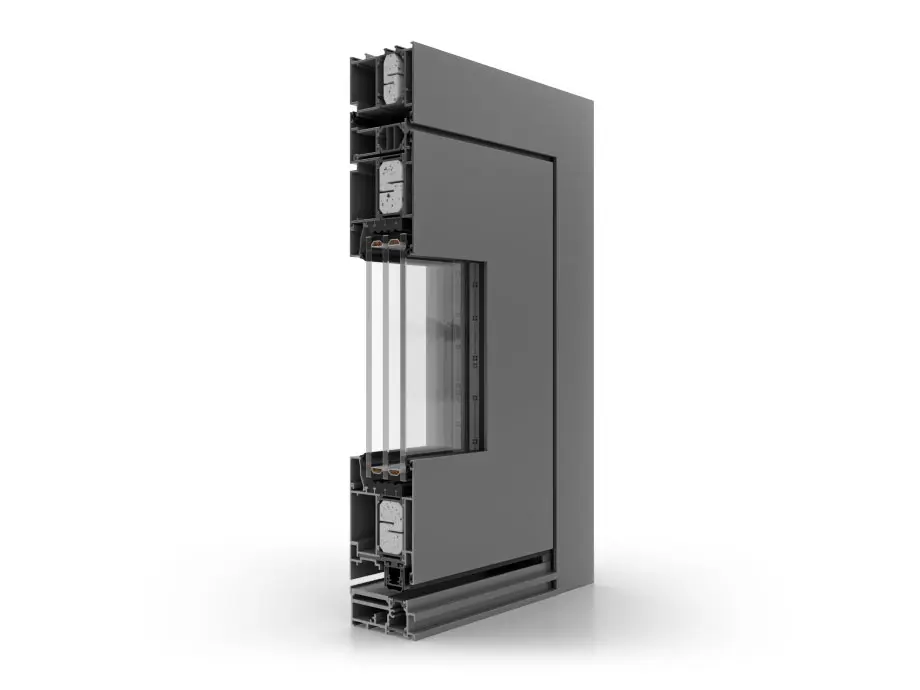

MasterLine 8 Pivot XL — cutaway section through the frame, sash, thermal break and glazing

360° section through the frame, sash, thermal break and glazing unit.

Aluprof MasterLine 8 Pivot

MasterLine 8 Pivot XL

13'1" tall, 8'2" wide, half a tonne of door. The one that stops traffic.

The oversize MasterLine 8 Pivot. Same 77 mm platform and offset axis, but engineered for a leaf up to four metres tall and half a tonne — and it can be ordered as a three-leaf landscape run.

  • Leaf heights past 13 feet — the tallest pivot we can source
  • Three-sash landscape version for wide architectural openings
  • Rated to 1,102 lb of leaf, which is what full-glass at this size weighs
MasterLine 8 Pivot XL specifications
Installation depth (frame & sash)3" (77 mm)
Glass thickness in sash3/8"–2-7/16" (10–62 mm)
Maximum sash height13' 1" (4000 mm)
Maximum sash width8' 2" (2500 mm)
Maximum sash weight1,102 lb (500 kg)
ConfigurationsSingle-sash, or three-sash landscape
FinishFull RAL K7 palette; custom powder codes on request

What the leaf can be filled with

The ranges Eko-Okna list for this system. Each keeps its own size limits — a panel is never built past its own maximum, however large the leaf is allowed to be.

Specifications published by the manufacturer · Eko-Okna product page ↗

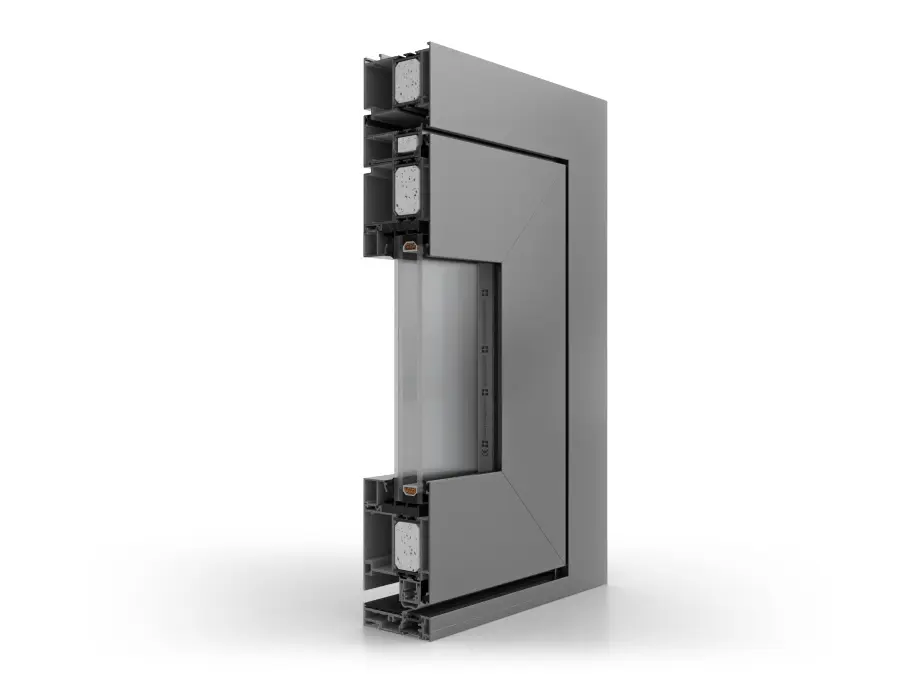

MB-86N Pivot — cutaway section through the frame, sash, thermal break and glazing

360° section through the frame, sash, thermal break and glazing unit.

Aluprof MB-86N Pivot

MB-86N Pivot

The all-glass one — full glazed leaves, linear drainage, zero threshold.

Built on the MB-86N system, the most widely specified aluminium platform Aluprof makes — so the door matches the windows, sliders and curtain wall on the same house. It is the pivot to ask for when the leaf is glass rather than panel, and the only one here offering linear drainage.

  • Takes full glass panels: the all-glass pivot look, in a thermally broken frame
  • Linear drainage — no visible weep slots across the bottom rail
  • Zero-threshold option for a flush, barrier-free entry
MB-86N Pivot specifications
Installation depth (frame & sash)3" (77 mm)
Maximum glazing thickness in sash2-3/8" (60 mm)
Maximum sash weight1,102 lb (500 kg)
Maximum dimensions W × H6' 7" × 11' 2" (2000 × 3400 mm)
Width range3' 11"–6' 7" (1200–2000 mm)
Height range6' 7"–11' 2" (2000–3400 mm)
Thermal variantsST, SI, SI+
Threshold20 mm low threshold, flush ("zero") installation available
Bottom sealDrop-down seal
DrainageVisible or linear, with 2 masking-cover types
LockingOne or two espagnolettes
FinishPowder coated, full RAL K7; custom powder codes on request

Weather performance

MB-86N Pivot weather performance classes
Air permeability (EN 12207)Class 3
Watertightness (EN 12208)Class 3B
Wind load resistance (EN 12210)Class C3

Manufacturer's classes, measured on a reference door of 1498 × 3059 mm in the SI+ thermal version.

What the leaf can be filled with

The ranges Eko-Okna list for this system. Each keeps its own size limits — a panel is never built past its own maximum, however large the leaf is allowed to be.

Specifications published by the manufacturer · Eko-Okna product page ↗

Millennium Plus Pivot — cutaway section through the frame, sash, thermal break and glazing

360° section through the frame, sash, thermal break and glazing unit.

Cortizo Millennium Plus Pivot

Millennium Plus Pivot

Cortizo's 80 mm platform — the weather-sealing champion, C5 / 5A.

The Spanish alternative. Millennium Plus runs an 80 mm frame with a 24/26 mm thermal break and a 400 mm pivot-axis offset, and it posts the strongest weather classes of any door on this page — useful on exposed elevations and in town, where its acoustic insulation earns its keep.

  • Top weather classes here — air 4, water 5A, wind C5
  • Panel fanlights can be built into the same elevation
  • Bicolor and pre-anodized finishes, not just powder coat
Millennium Plus Pivot specifications
Frame & sash depth3-1/8" (80 mm)
Maximum glazing thickness in sash2-1/2" (64 mm)
Maximum sash weight551 lb (250 kg)
Maximum dimensions W × H6' 7" × 9' 10" (2000 × 3000 mm)
Pivot axis offset15-3/4" (400 mm)
Door profile thickness2 mm
Thermal break width24/26 mm
DrainageVisible, or from below
FinishFull RAL K7, pre-anodized, and bicolor; custom powder codes on request

Weather performance

Millennium Plus Pivot weather performance classes
Air permeability (EN 12207)Class 4
Watertightness (EN 12208)Class 5A
Wind load resistance (EN 12210)Class C5

Manufacturer's classes, measured on a reference door of 1200 × 2000 mm, single sash.

What the leaf can be filled with

The ranges Eko-Okna list for this system. Each keeps its own size limits — a panel is never built past its own maximum, however large the leaf is allowed to be.

Specifications published by the manufacturer · Eko-Okna product page ↗

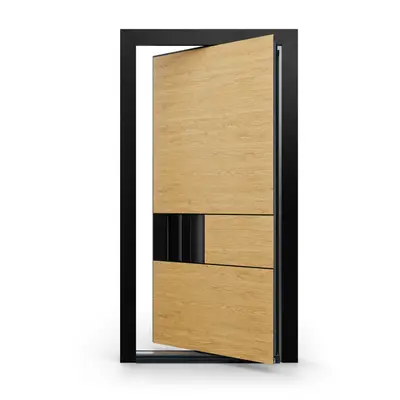

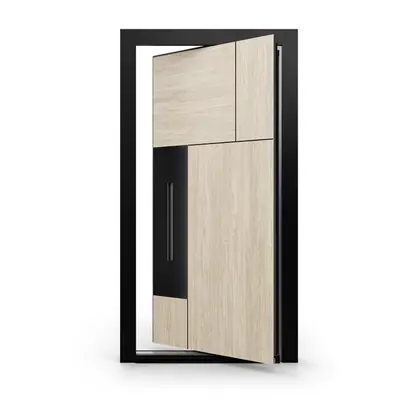

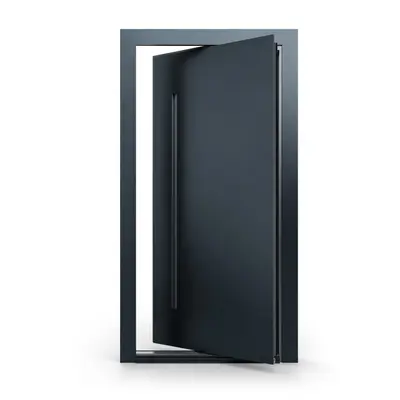

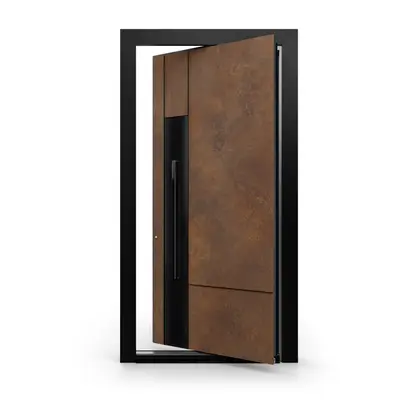

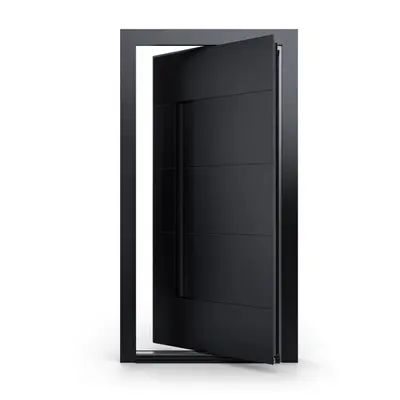

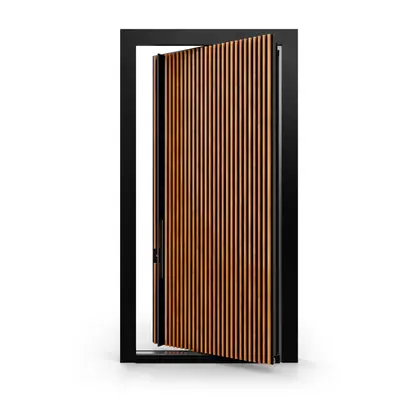

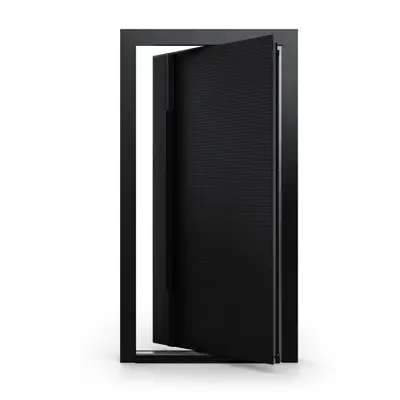

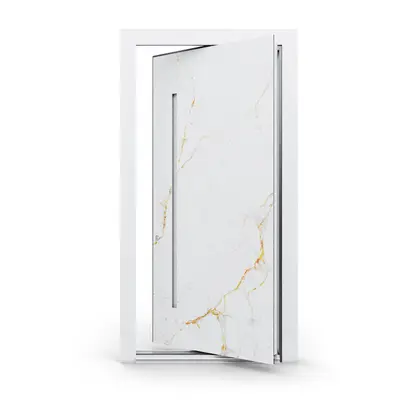

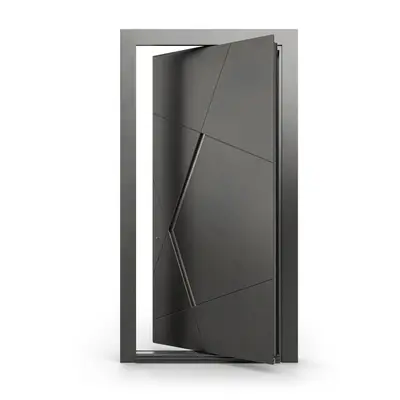

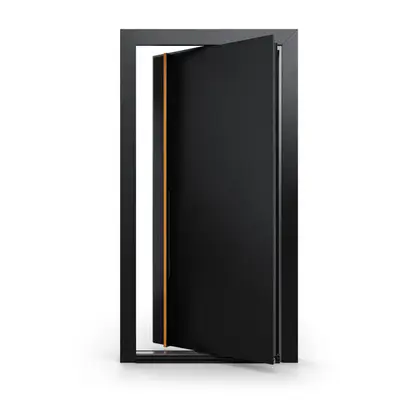

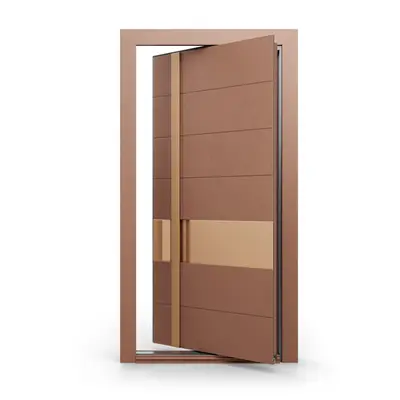

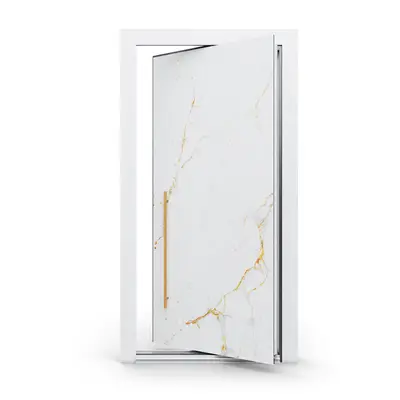

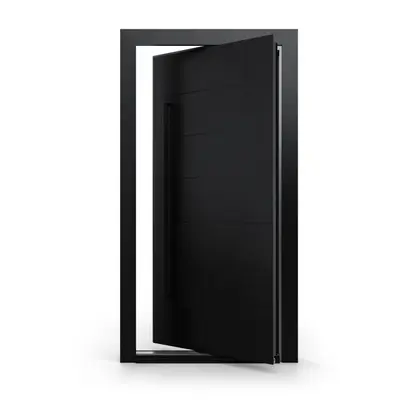

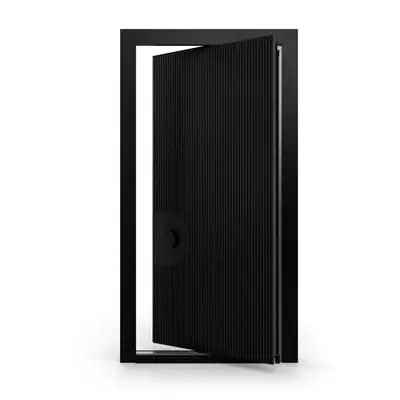

Pivot Line panels

All 16 designs

The panel range built specifically for offset-axis pivot doors. Oversize leaves, exclusive materials — brushed metals, Woodec textures, structured glass — and recessed handles that can be LED-backlit in warm or cool white.

Pivot Line panel specifications
MaterialAluminium
LED backlightingWhite — warm or cool
Maximum height10' 2" (3100 mm)
Maximum width5' 11" (1800 mm)
Opening schemeInwards

Not just Pivot Line

Also available on a pivot leaf

Eko-Okna list the same panel ranges on all 4 pivot systems as on the hinged door. Every design below can be built on a pivot — filter by range or type a code.

Despiro 53

The main range. A 3-inch aluminium panel filled with insulation, built to order — timeless in the plain grooved designs, dramatic in the stainless and glazed ones. Selected designs take safety glazing or recessed LED-lit pull handles.

Retro Line (overlay) 26

Classic elegance on the modern panel. The overlay build applies the moulding on top of a full 3-inch Despiro panel, so you get traditional proportions with the thermal performance and the flat-panel rigidity of the modern range.

Retro Line (insert) 26

The same 26 classic designs, built as an insert panel inside the door frame rather than laid over it — simple shapes, safety-glazed lights and traditional hardware. Panel thickness follows the design.

One limit to know. Each range keeps its own size ceiling — Eko-Okna publish these three to a maximum door of 102-3/8" × 55-1/8" (2600 × 1400 mm), so on a leaf taller or wider than that the panel is not the right filling, and we will say so before you order rather than after. Eko-Okna also list their AluLine panels ↗ for these systems (122 designs, 15/16", 1-7/16" or 1-7/8" (24, 36 or 48 mm), Classic or Plus filling); that range is not catalogued here — ask and we will quote from it.

Each tile opens the design's page in the entry-door catalog — same design, same page, whether you hang it on a hinge or a pivot, and quoted to your opening either way — the door, its delivery, installation and sales tax itemised.

Eko-Okna aluminium

Colours & finishes

Every door is finished to order. These are the colours Eko-Okna print as samples for their aluminium doors, every wood-effect finish they list, and the textures.

RAL sample colours 18

  • RAL 9016 Traffic white
  • RAL 9003 Signal white
  • RAL 1013 Oyster white
  • RAL 7047 Telegrey 4
  • RAL 7005 Mouse grey
  • RAL 7008 Khaki grey
  • RAL 7016 Anthracite grey
  • RAL 9005 Jet black
  • RAL 8000 Green brown
  • RAL 8015 Chestnut brown
  • RAL 8019 Grey brown
  • RAL 8022 Black brown
  • RAL 1037 Sun yellow
  • RAL 2013 Pearl orange
  • RAL 2002 Vermilion
  • RAL 3001 Signal red
  • RAL 3004 Purple red
  • RAL 6005 Moss green

Any RAL K7 colour on request — or a specific powder code. Eko-Okna’s aluminium palette also lists Tiger powder coatings.

Wood-effect finishes 17

Made on selected designs and systems (Eko-Okna: “Decor (some models)”), so we confirm which ones your door takes when we quote it.

DECOR aluminium colours

  • Golden Oak
  • Nut
  • Mahogany
  • Sapela mahogany
  • Vein nut

Aluprof Decor colours

  • ADEC B108
  • ADEC C110
  • ADEC D101
  • ADEC D207
  • ADEC J107
  • ADEC M103
  • ADEC M204
  • ADEC O102
  • ADEC O205
  • ADEC S106
  • ADEC W109
  • ADEC W205

And from Eko-Okna’s catalogue: “Also available in other versions imitating wood.”

Textures & special finishes

  • Textured powder coat

    Eko-Okna powder-coat aluminium “with different styles of structure” — ask to see the textures on a real sample.

    • DB 703 Anthracite, fine metallic texture
    Metallic

    DB 703, the fine-textured metallic anthracite in Eko-Okna’s aluminium samples.

  • Wood-effect Decor

    Eko-Okna’s special paint for wooden patterns — the finishes above. They list it for the MasterLine 8 Despiro and MasterLine 8 Pivot (“Decor wood-like”) and for selected Despiro designs (“some models”).

  • Pre-anodised and bicolour

    Published for the Millennium Plus Pivot: a pre-anodised finish, or one colour outside and another inside.

Screen colours are approximate — see real samples in our Hackensack showroom.

As published by Eko-Okna — their External Door Catalog (pp. 168–175 of the manufacturer catalogue, PDF), their Aluminium Catalogue and their product pages. RAL chips are screen approximations of the RAL Classic colours.

Let's scope your pivot door

Bring the opening, the elevation, or just a photo you like. We measure, we detail the threshold and floor fixing, and we install — and you get a real number instead of a range.
