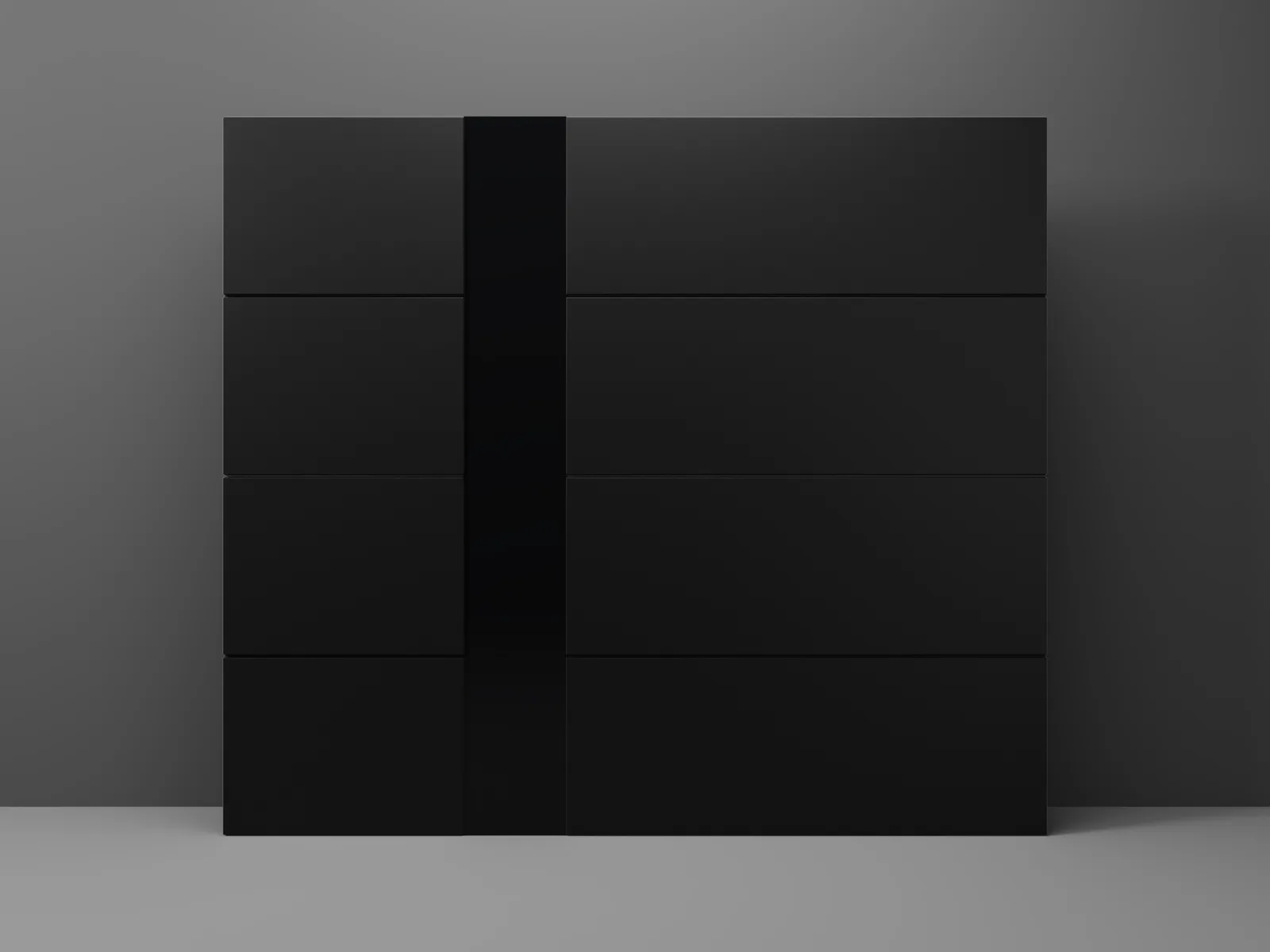

Your door: R-10.25 · 8' x 7' · BLX Black · 12" column · left third (from outside) · 2 · slim + wide · None
Garage Doors
Meridian by Modern Decor - Vertical Glass Aluminum Composite (ACM) Garage Door
Modern Decor Meridian — aluminium composite (ACM) panels, routed and folded, standing 5/8" proud of an insulated steel door. A full-height dark-tint column set on the third line, so the two ACM fields are deliberately unequal.
Build code SWR
Need a different size? Sizes to the inch, in between the ones listed, are made to order — ask for a quote.
Left and right as seen from outside, standing in the driveway.
12" columns · both sides and 17" columns · both sides need a door at least 12 ft wide.
From inside we add one more layer over the glass — a second pane in effect, though it is not true insulated glass. Tinted doubles the tint, so the glass reads darker from both sides. Frosted keeps people from seeing in at night with the lights on and still lets the daylight through.
Included — interior choices don't change the price.
How to measure
Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.
Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).
A high-lift track runs up the wall before it turns back. Its lift is measured from the top of the opening to the bottom of the horizontal track; it needs headroom of the lift plus 12″, and backroom (measured back from the top of the opening) of your door height less the lift, plus 19″. Each high-lift option works out both from the headroom you enter.
Enter your headroom to see which tracks fit.
Installation & delivery: estimate it in the section below, or when you request pricing or check out — it itemises the estimate from your address and a few questions.
Professional installation (NJ): typically $700 – $2,450, by size and options; your address sets the exact estimate.
Neither button takes a payment or commits you to anything. Add to Cart saves this door so you can add more and send us the whole list. Ask about this door sends us this one door and our team gets back to you.
Financing through Synchrony for qualified customers. Subject to credit approval. Deals can’t be combined with financing. See plans & terms →
Visit the showroom
See our doors in person in Hackensack
Look at the finishes, try the hardware and talk your project through with our team.
390 Hackensack Ave #310Hackensack, NJ 07601
Mon–Sat 11am – 6pm · Sunday closed
The Meridian is our ACM vertical glass design. A full-height dark-tint column set on the third line, so the two ACM fields are deliberately unequal.
- Cladding: 4 mm aluminium composite panel (ACM), routed and folded, 5/8" proud of the door face
- Base door: insulated steel, R-10.25 or R-17.65
- Colors: BLX Black, MRO Anthracite Grey, Mica Grey, BSX Metallic Silver, SAW White
- Glass: 3 mm dark tint, recessed to the base plane
- Sizes: 8x6′6″, 8x6′9″, 8x7, 8x8, 8x9, 9x6′6″, 9x6′9″, 9x7, 9x8, 9x9, 10x6′6″, 10x6′9″, 10x7, 10x8, 10x9, 12x6′6″, 12x6′9″, 12x7, 12x8, 12x9, 14x6′6″, 14x6′9″, 14x7, 14x8, 14x9, 16x6′6″, 16x6′9″, 16x7, 16x8 — every design in every size
- ACM panels: you pick how many panels the composite is divided into and the rhythm of their widths — two, three or four on an 8, 9 or 10-ft door, and three, four or five on a 12, 14 or 16-ft one. On an 8, 9 or 10-ft door (one glass column): a slim panel beside the glass with one wide panel after it, or three or four equal panels. On a 12 to 16-ft door with one column: three, four or five equal panels, one wide field with slim panels at the ends, a slim edge panel and three equal, or a stepped rhythm reading narrow to wide across the door — slim then medium then wide, or two slim panels then two wide ones. With columns both sides: three, four or five equal panels, a slim panel outside each column around one wide middle, two wide and two slim, slim sides around a wide middle, slim sides around three equal panels, or the graded slim / medium / wide step. A slim panel is half the width of a wide one (of an equal one where the rhythm has no wide panel) and a medium sits between the two, so the proportions hold at every door width. The glass column always lands on a joint between panels, never at an edge, and the panel widths are cut to the door.
- Includes the heavy-duty hardware upgrade the added panel weight requires
Panel widths are not always equal — the layout is composed for the proportion of the door, not forced to a grid.
This door is a finished insulated steel sectional door with one more layer on its face. The layer is what you see; the door underneath is a complete door.
The door underneath
- R-10.25 — steel, an expanded polystyrene core, steel. Build code SWR.
- R-17.65 — steel, an injected polyurethane core, steel. Build code SWA.
Warranty: covered by the Modern Decor Limited Warranty — Products, section 4 (garage doors we build), on the terms of its build code.
An aluminium composite panel on top
Here the layer is an aluminium composite panel (ACM) instead of steel: 4 mm panels, routed and folded, standing 5/8" proud of the door face.
It is a layer laid onto a finished door, not a different door — which is why the four section joints still read the way they do on any sectional door, and why the pattern is a real composition in a real material rather than a print.
Glass sits inside the panel, recessed to the door's own plane, and the opening goes through the door behind it.
Placeholder diagram
Meridian — ACM Vertical Glass
A full-height dark-tint column set on the third line, so the two ACM fields either side of it are deliberately unequal. The glass runs the height of the door in one piece per section, and never sits as an edge piece.
What you choose
- Layout: a 12″ or 17″ column on the left or right third, or a column on both sides. Both-sides layouts need the width to carry them, so the configurator only shows them on the doors wide enough for them.
- ACM panels: how many panels the composite is divided into, and the rhythm of their widths. Pick the count and the rhythm; the widths are cut to the door. The counts follow the width — two, three or four panels on an 8, 9 or 10-ft door and three, four or five on a 12, 14 or 16-ft — in rhythms chosen for the glass. On an 8, 9 or 10-ft door (one column): a slim panel beside the glass with one wide panel after it, or three or four equal panels. On a 12 to 16-ft door with one column: three, four or five equal panels, one wide field with slim panels at the ends, a slim edge panel and three equal, or a stepped rhythm, the panels growing narrow to wide across the door — slim, medium, wide, or two slim panels grouped together then two wide ones — with the narrow end on the side the glass is. With columns both sides: three, four or five equal panels, a slim panel outside each column around one wide middle, two wide and two slim, slim sides around a wide middle, slim sides around three equal panels, or the graded step — slim at both ends, medium inside them, the widest in the middle. A slim panel is half the width of a wide one (of an equal one where the rhythm has no wide panel) and a medium sits between the two, so the proportions hold at every door width — on a 16-ft door with 12″ columns both sides, slim sides around a wide middle is 28″ | glass | 28″ | 56″ | 28″ | glass | 28″. The glass column always lands on a joint between panels, never at an edge, and only the rhythms made for the chosen size are shown.
- Insulation: R-10.25 or R-17.65.
- Size: 8' x 6' 6", 8' x 6' 9", 8' x 7', 8' x 8', 8' x 9', 9' x 6' 6", 9' x 6' 9", 9' x 7', 9' x 8', 9' x 9', 10' x 6' 6", 10' x 6' 9", 10' x 7', 10' x 8', 10' x 9', 12' x 6' 6", 12' x 6' 9", 12' x 7', 12' x 8', 12' x 9', 14' x 6' 6", 14' x 6' 9", 14' x 7', 14' x 8', 14' x 9', 16' x 6' 6", 16' x 6' 9", 16' x 7' or 16' x 8'.
- Color: BLX Black, MRO Anthracite Grey, Mica Grey, BSX Metallic Silver or SAW White.
Every panel count and rhythm costs the same as every other on the same door: the composite is priced by the area it covers and the glass by the piece, and none of those change when the field is divided differently. Each photographed front is drawn from its own rhythm’s panel widths, in its own finish. A size whose fronts have not been rendered yet is drawn as a schematic of the same panels, and priced exactly all the same.
Construction, glass and finish details shared by every ACM design are in the Construction & Materials tab.
How an ACM door is built
An ACM door starts as a real insulated steel sectional door and is clad in 4 mm aluminium composite panel (ACM). Every face is routed and folded from a single sheet, so the panel you see has no applied edge trim, and it stands 5/8″ proud of the door face. The leaf is four sections of 2″ thickness, and the section joints stay visible as they do on any sectional door — the pattern is applied to a door, not printed on a slab.
Base door and insulation
- Base: insulated steel sectional door, R-10.25 or R-17.65.
- Hardware: the heavy-duty hardware upgrade the added panel weight requires is included.
- Sections: four per door — 21″ each on a 7-ft door and 24″ on an 8-ft door; a 6′ 6″ or 6′ 9″ door, on the lines that sell one, has 18″ sections at the top (18 / 18 / 21 / 21″ and 18 / 21 / 21 / 21″, top first); a 9′ door, on the lines that sell one, is five sections — four of 21″ and one of 24″ (21 / 21 / 21 / 21 / 24″, top first).
Colors
ACM is its own finish family: composite is never finished in the woodgrain steel colors, and steel is never finished in the composite ones. On the two hybrid doors — the Duet and the Wood Band — both materials sit on the same leaf, and each keeps its own palette.
- BLX Black
- MRO Anthracite Grey
- Mica Grey
- BSX Metallic Silver
- SAW White
Glass
Glazed ACM designs use 3 mm dark tint glass, recessed to the base plane so the ACM stays the outermost surface. Panes are used at their stock cut sizes and are never re-cut to fit a layout — where a width will not divide exactly, the design absorbs it in the ACM, not in the glass.
Panel gaps and proportion
The reveal between panels runs 3/8″, 1/2″, 3/4″ or 1″. It is chosen by the layout for the proportion of your door rather than offered as a separate choice, which is also why panel widths within a design are not always equal.
Sizes
This door is offered in 8' x 6' 6", 8' x 6' 9", 8' x 7', 8' x 8', 8' x 9', 9' x 6' 6", 9' x 6' 9", 9' x 7', 9' x 8', 9' x 9', 10' x 6' 6", 10' x 6' 9", 10' x 7', 10' x 8', 10' x 9', 12' x 6' 6", 12' x 6' 9", 12' x 7', 12' x 8', 12' x 9', 14' x 6' 6", 14' x 6' 9", 14' x 7', 14' x 8', 14' x 9', 16' x 6' 6", 16' x 6' 9", 16' x 7' or 16' x 8'. The sizes follow the design rather than the material, so each ACM line has its own list — it is repeated under Model Specifications, and the configurator's size chips offer exactly the same doors.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.

Below are specifications of all Garage Door Motor Options





LM L979M WIRELESS KEYPAD MAX:
- Compatible with most major brands of Garage Door Openers manufactured after January 1997.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (PIN codes, set schedules, notifications, access history and battery status) with Security+ 3.0 Garage Door Openers.
- Users can program temporary PIN codes for friends and service people.
- Closes the Garage Door instantly with one press activation
LM 878 Max Wireless Keypad
- Features Security+ 2.0® rolling code technology
- One-button-to-close feature (works with all LiftMaster garage door openers manufactured since 2006)
- Temporary password option, Program code directly from keypad
- Backlit keypad, Includes 9V battery
- Compatible with all LiftMaster garage door openers manufactured since January 1993
KSWKP WIRELESS KEYPAD KWIKSET
- Compatible with Kwikset FLEX openers
- Open or close the garage door without using a remote
- Includes 9V battery
LM 893 Max 3-Button Remote Control
- Controls up to three garage door openers, gates or myQ® enabled light devices
- Features Security+2.0 rolling code technology
- Compatible with all LiftMaster garage door openers manufactured since January 1993, and all 315MHz LiftMaster and ELITE gate operators
LM L932M 2 BUTTON KEYCHAIN MAX
- Compatible with up to three Garage Door Openers, Gate Operators, or Commercial Door Operators manufactured by LiftMaster after 1997.
- Extra-long range for extended reach and reliable operation.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (naming, notifications and access history) with Security+ 3.0 and Security+ 2.0 Garage Door Openers.
- Fits on a keychain, backpack or in a purse or pocket
KSTX3 FLEX REMOTE 3 BUTTON
- Compatible with Kwikset FLEX openers
- Controls up to three Garage doors
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
KSTX1 FLEX REMOTE 1 BUTTON
- Compatible with Kwikset FLEX openers
- Controls one garage door
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
Installation
Every Modern Decor garage door can be installed by our own crews. Under the door price, this page shows what installing the door typically costs — from a new opening to replacing an old door with removal, haul-away and trim. Choose Installation when you request pricing and the quote form itemises an estimate for your opening — the installation, the opener, special tracks, weather strip, trim and travel from your address — and takes photos of the opening. Our team confirms it with you before scheduling.
The whole job, priced up front. Taking out your old door, hauling it away, trim, weather strip and travel are all on that estimate, line by line, and nothing is added on install day without your OK. The one thing nobody can price before the old door is out is hidden damage, like a rotted jamb: if we find it, it has to be repaired before the new door can go in — a door can't be hung on a rotted jamb. We show you the damage and price the repair with you on the spot before we do it.
Sold and installed by Modern Decor Supply LLC, NJ Home Improvement Contractor Reg. #13VH13488900, from our Hackensack, NJ showroom — serving New Jersey, New York, Pennsylvania and Connecticut.
Before you order
- Measure the opening, not the old door. The How to Measure Garage Opening tab shows exactly what to measure.
- Check your headroom and jambs. Track and headroom options — standard radius, low-headroom, high-lift, vertical-lift and follow-the-roof-pitch — are chosen in the configurator above, and each option states the headroom it needs.
- High-lift, in plain numbers. A high-lift track runs up the wall before it turns back; its lift is measured from the top of the opening to the bottom of the horizontal track. It needs headroom of the lift plus 12″, and backroom — measured back from the top of the opening — of the door height less the lift, plus 19″. A 7-ft door with 28″ of lift needs 40″ of headroom and 75″ of backroom. Enter your headroom in the configurator and each high-lift option shows the lift it would be built with, and the headroom and backroom that lift needs.
- Decide on the opener while you are there: motors, keypads and remotes are all priced with the door, and the opener's installation is a line of its own in the installation estimate.
Lead time
These doors are made to order. The production time for your exact configuration is given in writing with your quote, as an estimate, not a promised date — ask us and we will tell you what we are running the week you order, rather than publishing a number that drifts.
