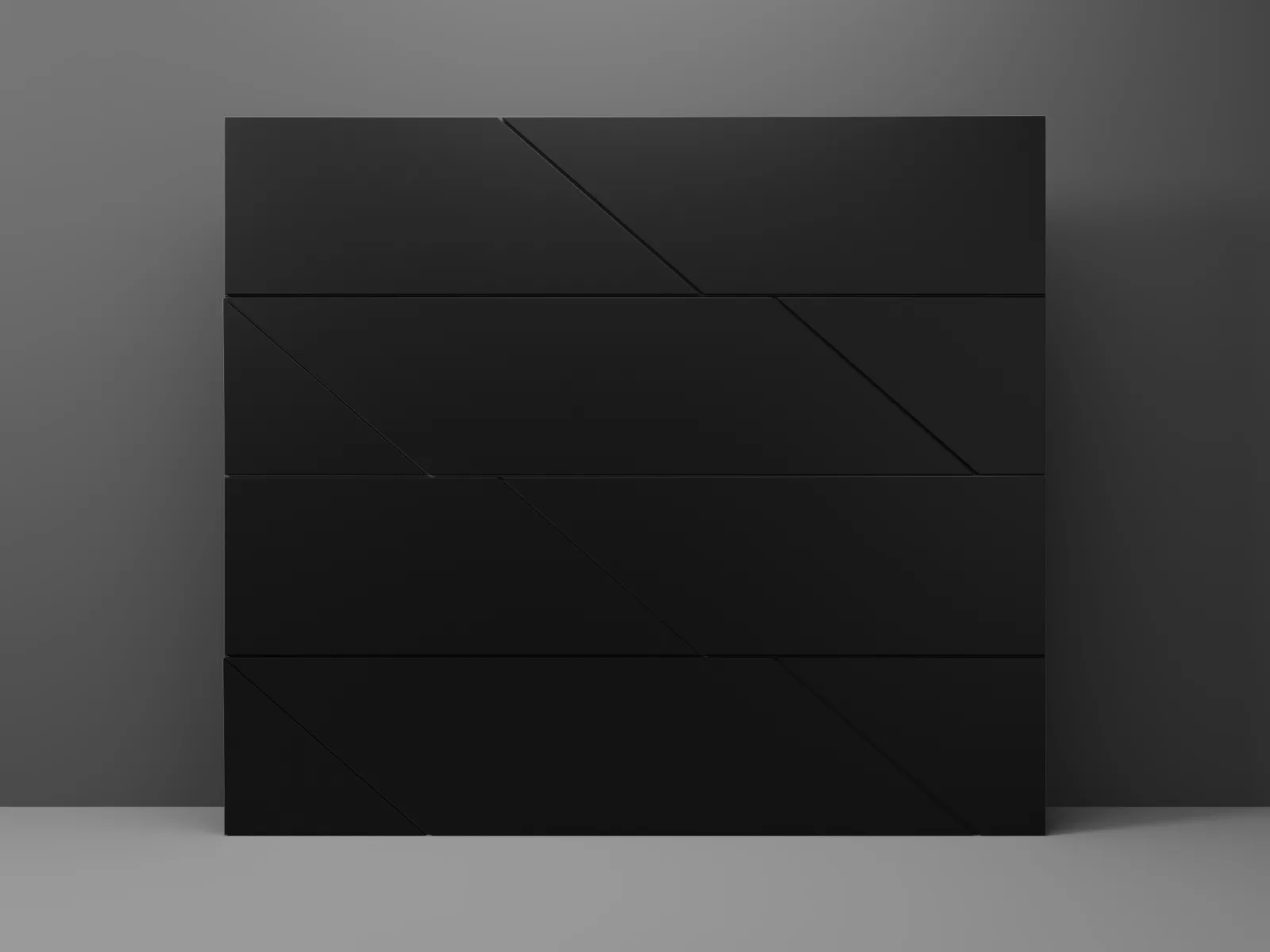

Cadence by Modern Decor - Aluminum Composite (ACM) Garage Door — R-10.25 · 8' x 7' · BLX Black · Trapezoid running bond · None
See it from inside the garage

Your door: R-10.25 · 8' x 7' · BLX Black · Trapezoid running bond · None

Garage Doors

Cadence by Modern Decor - Aluminum Composite (ACM) Garage Door

Modern Decor Cadence — aluminium composite (ACM) panels, routed and folded, standing 5/8" proud of an insulated steel door. The staggered field with leaning seams — every panel a trapezoid, running bond.

R-ValueR-10.25

Build code SWR

Size8' x 7'

Need a different size? Sizes to the inch, in between the ones listed, are made to order — ask for a quote.

ACM ColorBLX Black
LayoutTrapezoid running bond
Gap FillNone
Add-ons & upgrades
Track & headroomChoose a track
How to measure

Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.

Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).

A high-lift track runs up the wall before it turns back. Its lift is measured from the top of the opening to the bottom of the horizontal track; it needs headroom of the lift plus 12″, and backroom (measured back from the top of the opening) of your door height less the lift, plus 19″. Each high-lift option works out both from the headroom you enter.

Enter your headroom to see which tracks fit.

Installation & delivery: estimate it in the section below, or when you request pricing or check out — it itemises the estimate from your address and a few questions.

Door price
$4,100 – $10,187
Tax not included

Professional installation (NJ): typically $700 – $2,450, by size and options; your address sets the exact estimate.

Calculating your configuration…

Financing available through Synchrony Bank · Deals can't be combined with financing. Learn more →

The Cadence is our ACM trapezoid stagger design. The staggered field with leaning seams — every panel a trapezoid, running bond.

  • Cladding: 4 mm aluminium composite panel (ACM), routed and folded, 5/8" proud of the door face
  • Base door: insulated steel, R-10.25 or R-17.65
  • Colors: BLX Black, MRO Anthracite Grey, Mica Grey, BSX Metallic Silver, SAW White
  • Glass: 3 mm dark tint, recessed to the base plane
  • Sizes: 8x6′6″, 8x6′9″, 8x7, 8x8, 8x9, 9x6′6″, 9x6′9″, 9x7, 9x8, 9x9, 10x6′6″, 10x6′9″, 10x7, 10x8, 10x9, 12x6′6″, 12x6′9″, 12x7, 12x8, 12x9, 14x6′6″, 14x6′9″, 14x7, 14x8, 14x9, 16x6′6″, 16x6′9″, 16x7, 16x8 — every design in every size
  • Includes the heavy-duty hardware upgrade the added panel weight requires

Panel widths are not always equal — the layout is composed for the proportion of the door, not forced to a grid.
