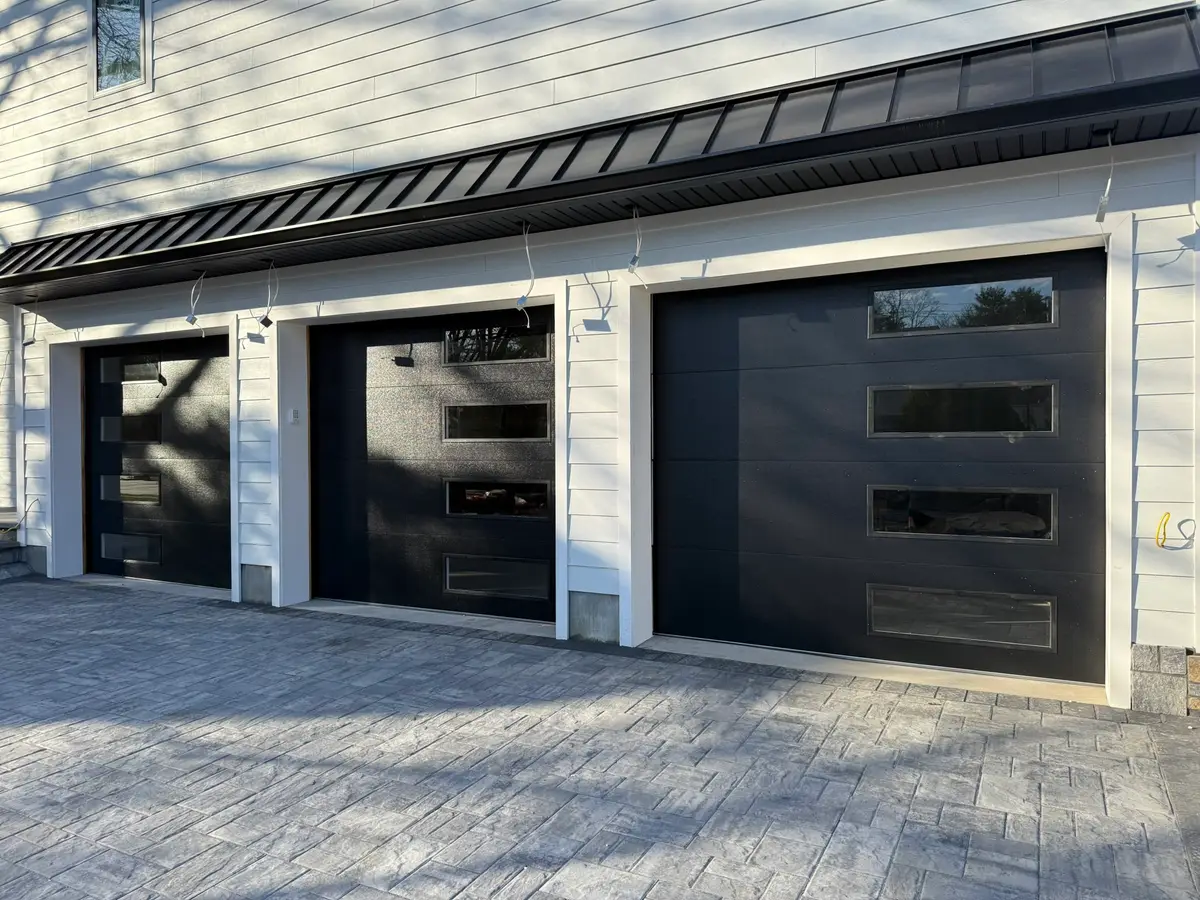

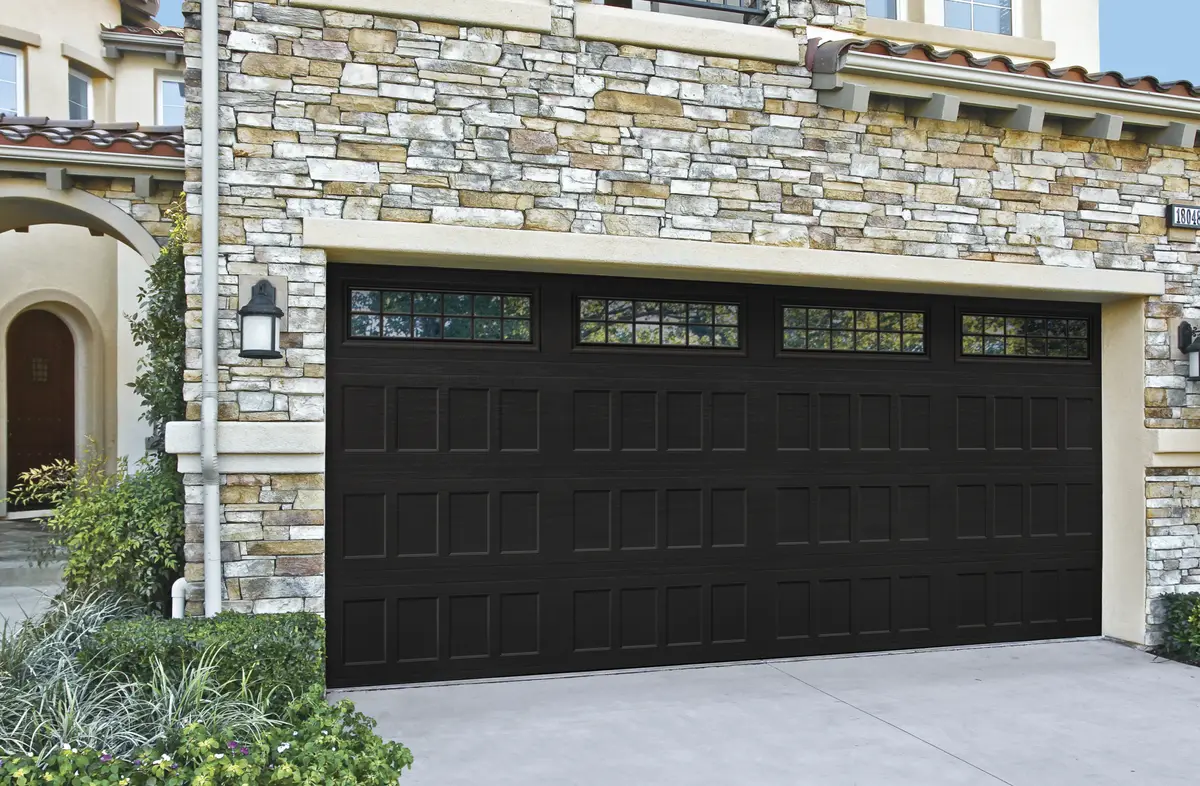

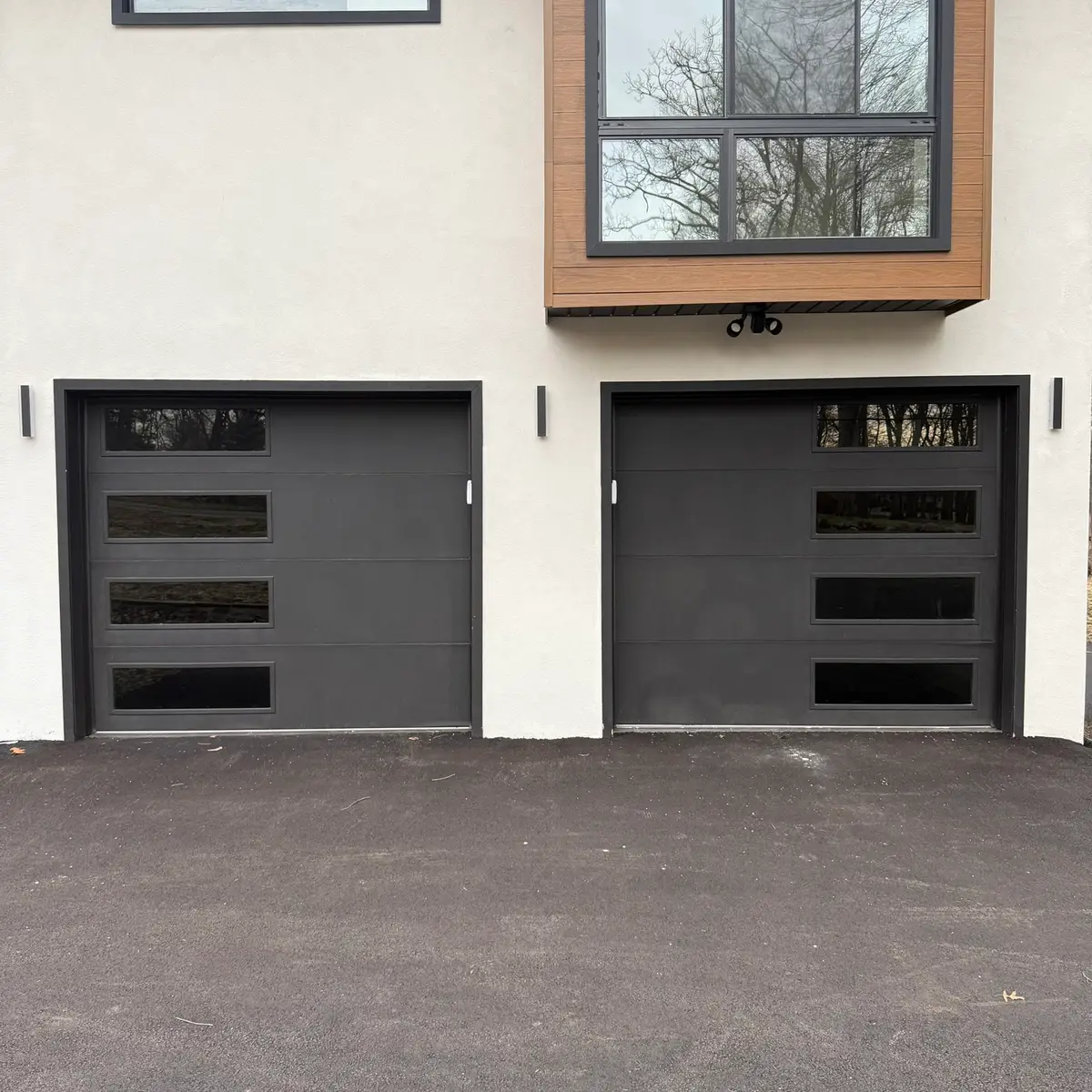

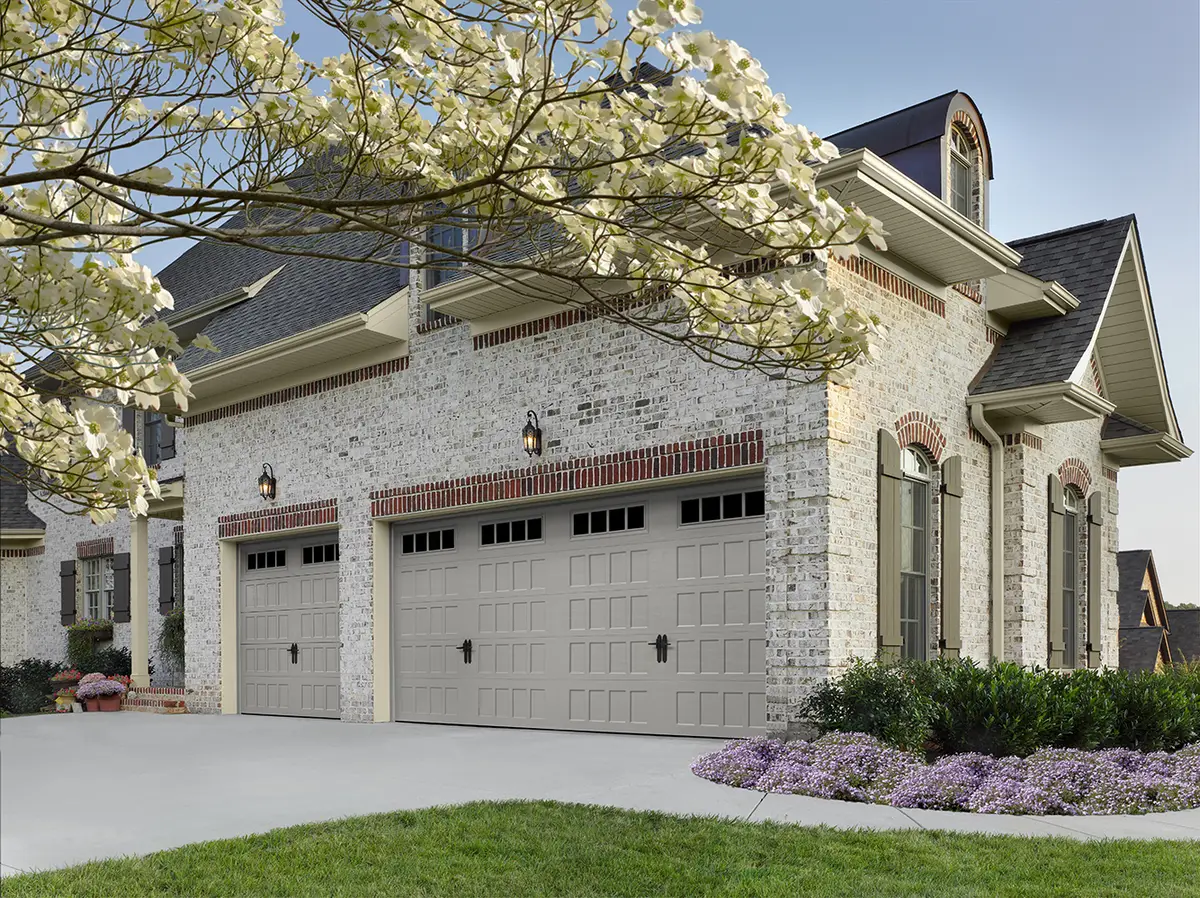

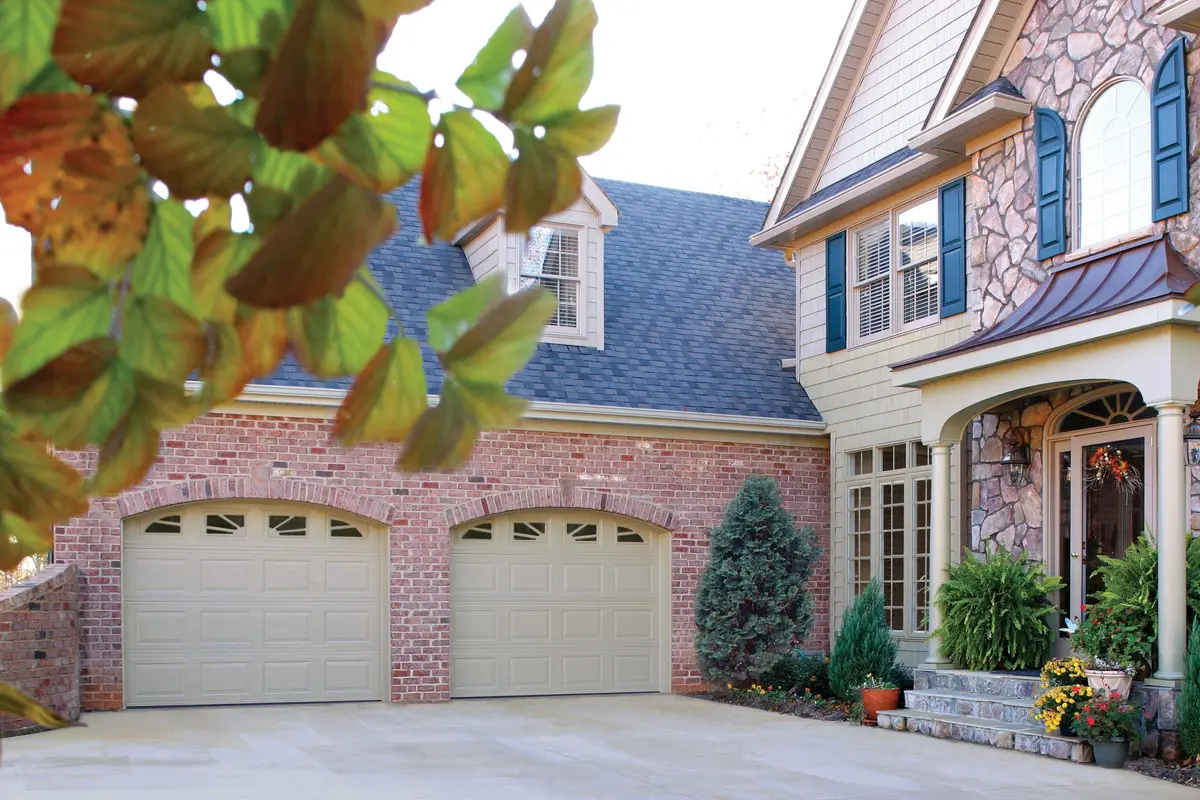

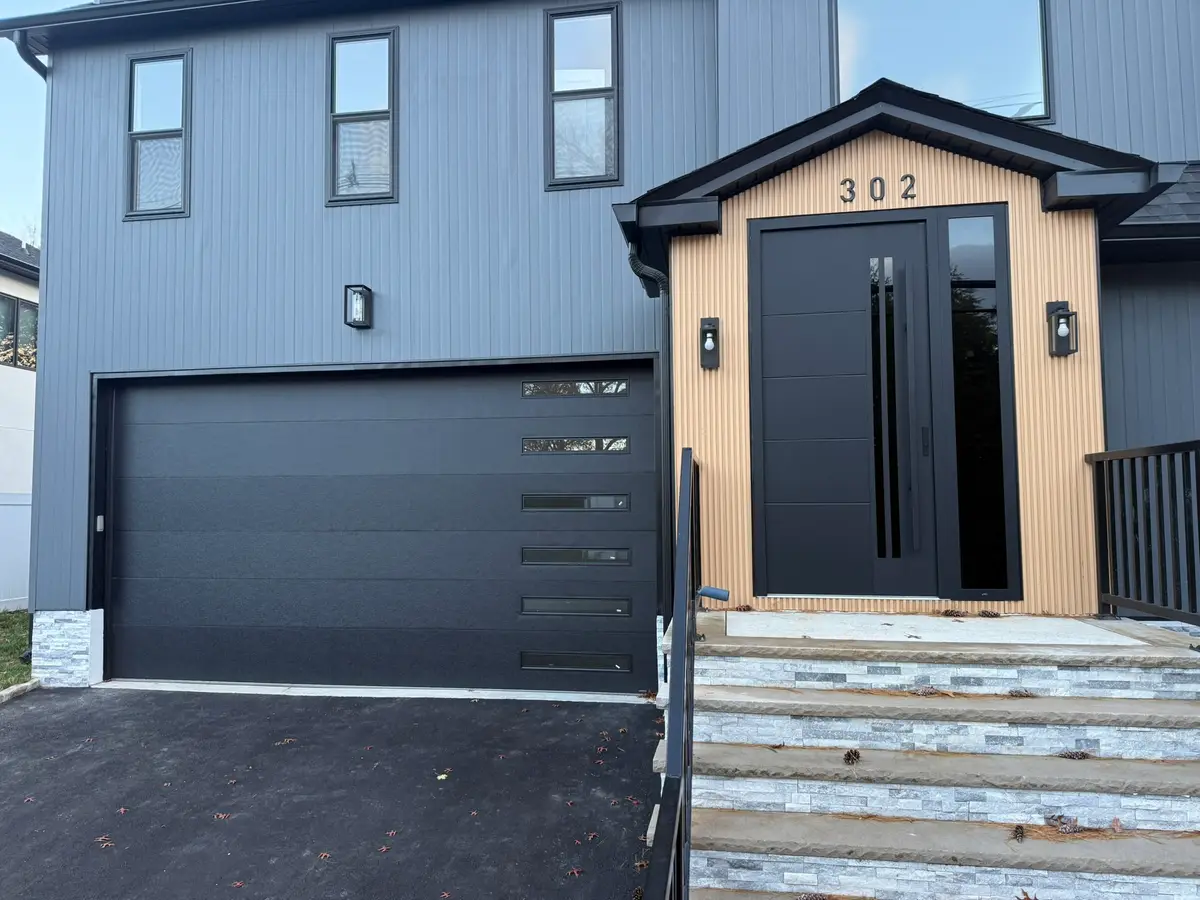

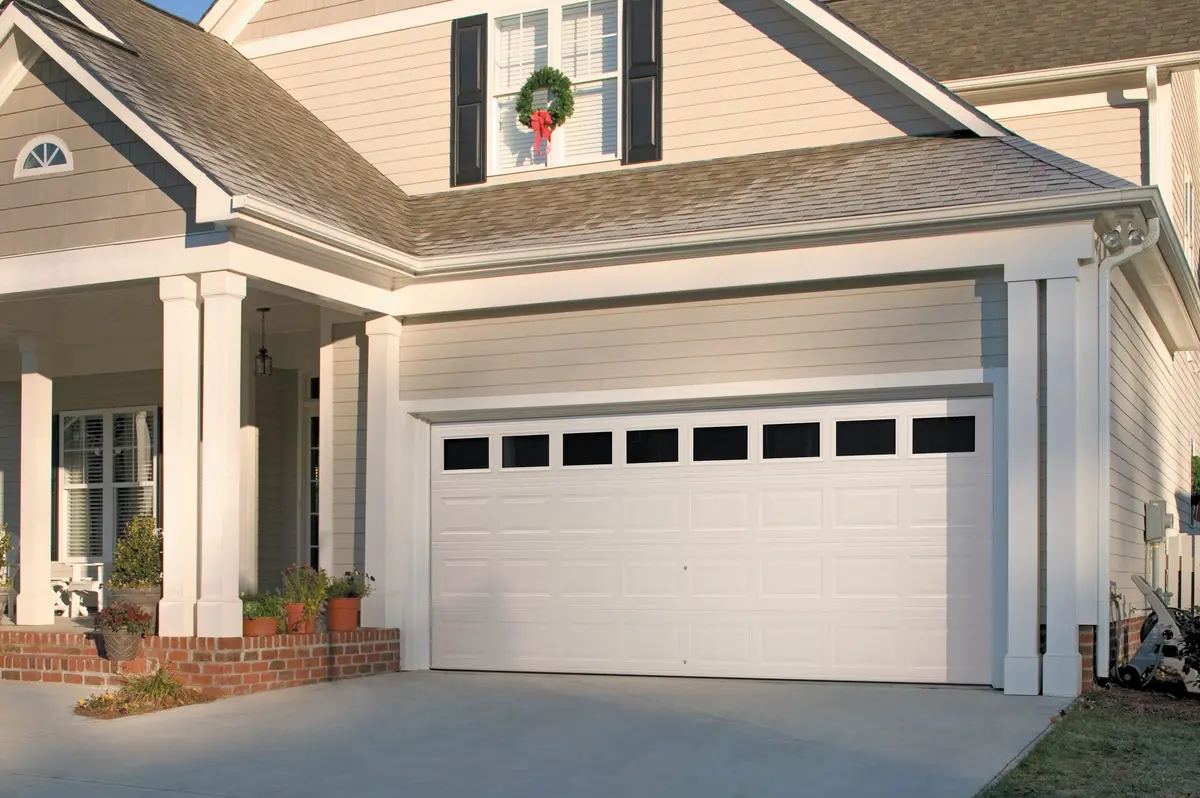

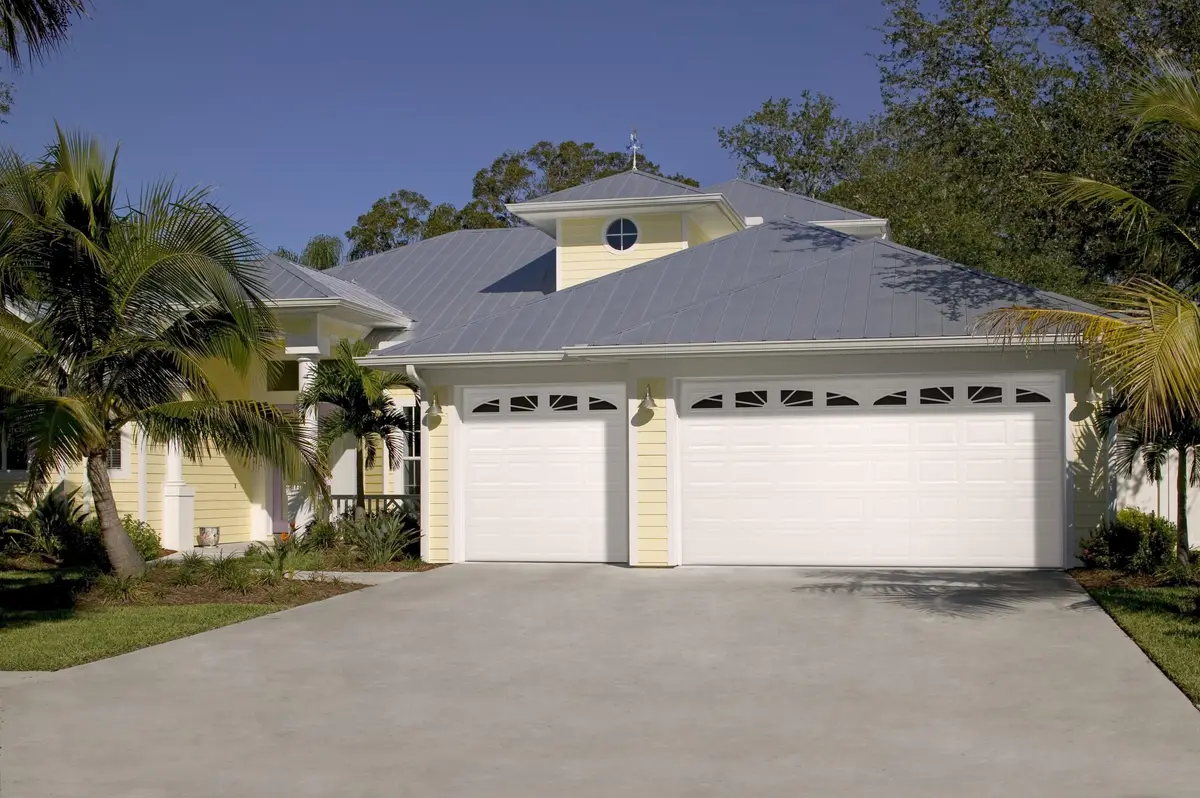

See it on real homes

Garage Doors

Amarr Heritage 3000 (Insulated R-9.05) Steel Garage Door

Name: Amarr Heritage 3000 (Insulated R-9.05) Steel Garage Door
Availability: InStock

Amarr Heritage 3000 (HR3000) — the flagship triple-layer insulated steel garage door (R-9.05), now with modern flush and ribbed faces alongside traditional and carriage house styles. Sold and installed by Modern Decor Supply across New Jersey and the surrounding region.

Size8' x 7'

ColorAlmond

Panel DesignBead Board

Window TypeInsulated Long

Window OrientationLeft Side

Window GlazingClear

Window DesignNo insert

Included — inserts don't change the price.

Add-ons & upgrades

Installation?Track mounting

Track & headroomChoose a track

Headroom above the opening (inches)

How to measure

Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.

Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).

Enter your headroom to see which tracks fit.

Garage MotorKeypadsRemotes

Starting at

$1,349

Calculating your configuration…

Financing available through Synchrony Bank · Promotional/sale-priced items are not eligible for financing. Learn more →

Prefer Amarr's own designer? Open the Amarr door builder

The Amarr Heritage 3000 (HR3000) is the flagship of the Heritage line — a 2" thick triple-layer door (steel + polystyrene + steel) rated R-9.05. Unlike the rest of the Heritage range, the HR3000 adds modern flush and ribbed panel designs to the traditional and carriage house lineup, so you get contemporary looks with a finished interior steel skin for superior efficiency, the quietest operation, and maximum dent resistance. It's our top pick for attached garages.

Construction: triple-layer steel-insulation-steel, 2" thick, 24/27-gauge
Insulation: R-9.05 / U-factor 0.26
Panel designs: modern Flush & Ribbed plus traditional Short & Long; carriage house Bead Board, Long Bead Board & Recessed
Colors: 10 finishes plus 800+ Amarr Color Zone custom colors
Windows: Clear, Obscure, Frost & Dark Tint glass (single-pane or insulated); DecraTrim, DecraGlass, modern SlimLine & Mosaic options; decorative carriage hardware available

See the Specifications tab for the full panel, color, and window-insert catalog. Sold and installed by Modern Decor Supply across New Jersey and the surrounding region — installation available.

Amarr Heritage Series — Premium Heavy-Gauge Steel Garage Doors

Amarr Heritage brochure page 1 — traditional and carriage house steel garage door designs and window options
Amarr Heritage brochure page 2 — construction, specifications, colors, DecraTrim and DecraGlass window inserts

Full Specifications, Colors & Window Options

Heritage is Amarr’s premium heavy-gauge steel collection — a full 2″ thick door built with heavier 24-gauge exterior steel than the value lines, backed by a limited lifetime warranty. It’s the step-up choice when you want a door that shrugs off basketballs, snow shovels, and twenty New Jersey winters, and it unlocks Amarr’s carriage house designs for a swing-door look with modern overhead operation. Modern Decor Supply sells and installs Heritage doors throughout New Jersey and the surrounding region with complete finished-job pricing — installation, haul-away, weatherstripping, and trim included.

Construction

HR1000 — Single-Layer Steel. Heavy-duty exterior steel, durable and low-maintenance, with a lifetime paint warranty.
HR2000 — Double-Layer (Steel + Insulation). Heavy-duty exterior steel backed by polystyrene insulation with vinyl backing. Energy efficient, quieter, 5-year workmanship warranty.
HR3000 — Triple-Layer (Steel + Insulation + Steel). The flagship: steel exterior, polystyrene core, steel interior skin. Superior efficiency, extra-quiet operation, maximum dent resistance, and a lifetime warranty on workmanship and hardware — not just paint.

Insulation in every model has passed self-ignition, flame-spread, and smoke-developed index fire testing. If your garage shares a wall with living space, the HR3000 is the one we recommend.

Specifications

Specification	HR1000	HR2000	HR3000
Construction	Single-layer steel	Steel + insulation	Triple-layer
Insulation	—	Polystyrene	Polystyrene
U-Factor	—	0.43	0.26
R-Value	—	6.64	9.05
Door thickness	2″ (5.1 cm)	2″ (5.1 cm)	2″ (5.1 cm)
Steel thickness	24 ga	24 ga	24/27 ga
Carriage house designs	3 designs	3 designs	3 designs
Insulated glass option	—	—	Yes
Wind load available	Yes	Yes	Yes
Paint finish warranty	Lifetime	Lifetime	Lifetime
Workmanship / hardware	3 years	5 years	Lifetime

R-values are calculated per DASMA TDS-163; Amarr participates in the DASMA Thermal Performance Verification Program. Lower U-factor means better thermal performance.

Panel Designs

Traditional:

Short Panel (SP) and Long Panel (LP) — all three models.
Flush Panel (FP) and Ribbed Panel (RP) — HR3000 only.

Carriage House (all three models, three designs each):

Bead Board (BB) — vertical beadboard texture, short-panel proportions.
Long Bead Board (LPBB) — beadboard texture, long-panel proportions.
Recessed (RE) — clean recessed-square carriage styling.

Woodgrain finishes are dual-directional across all designs. Carriage house doors can be finished with decorative handles and strap hinges (see Decorative Hardware).

Colors

Ten factory finishes; a price upcharge applies to every color except True White.

Standard: True White, Almond, Wicker Tan, Sandtone, Terratone, Dark Brown, Charcoal Gray, Black.
Woodgrain: Walnut, Mahogany.

Through the Amarr Color Zone program the Heritage can be ordered in over 800 approved Sherwin-Williams SnapDry colors. Doors are pre-painted; non-factory painting voids the paint finish warranty.

Glass Options

Window glass is 3/32″ single-strength: Clear (C), Obscure (O) (upcharge), Frost (WF) (upcharge), Dark Tint (WD) (upcharge). On the HR3000, insulated glass is available in Clear, Frost, and Dark Tint.

DecraTrim Window Inserts

Short-panel (traditional): No Insert, Stockton, Prairie, Cathedral, Cascade, Waterford, Wagon Wheel, Sunray, Full Sunray (16′, 17′, 18′ only), Five Piece Sunray (10′ doors, True White only).

Long-panel (traditional and carriage house): No Insert, Stockton, Prairie, Cathedral, Cascade, Moonlite, Waterford, Wagon Wheel, Sunray, Thames, Arched Thames, Full Sunray (15’6″, 15’8″, 16′, 17′, 18′ only).

DecraGlass Windows

Tempered obscure glass with a baked-on ceramic design. Short panel (traditional) and long panel (traditional and carriage house): Victorian, Heartland, Jardin, Mission, Trellis.

SlimLine Windows

A modern half-height window with a black or white frame only, in Clear, Frost, or Dark Tint glass (single-pane or insulated), on the HR3000 in flush and ribbed panel designs only.

Mosaic Window Options

On traditional designs, choose the number and placement of windows for a custom layout.

Decorative Hardware

Finish a carriage house door with decorative handles and hinges in Aluminum, Stamped Steel, and Magnetic ABS Vinyl collections — small touches that complete the authentic swing-door look.

See Heritage Doors in Person

Visit the Modern Decor Supply showroom to compare Heritage panel styles and colors, or call 201-633-5796 for a free complete installed quote with nothing added on install day.
