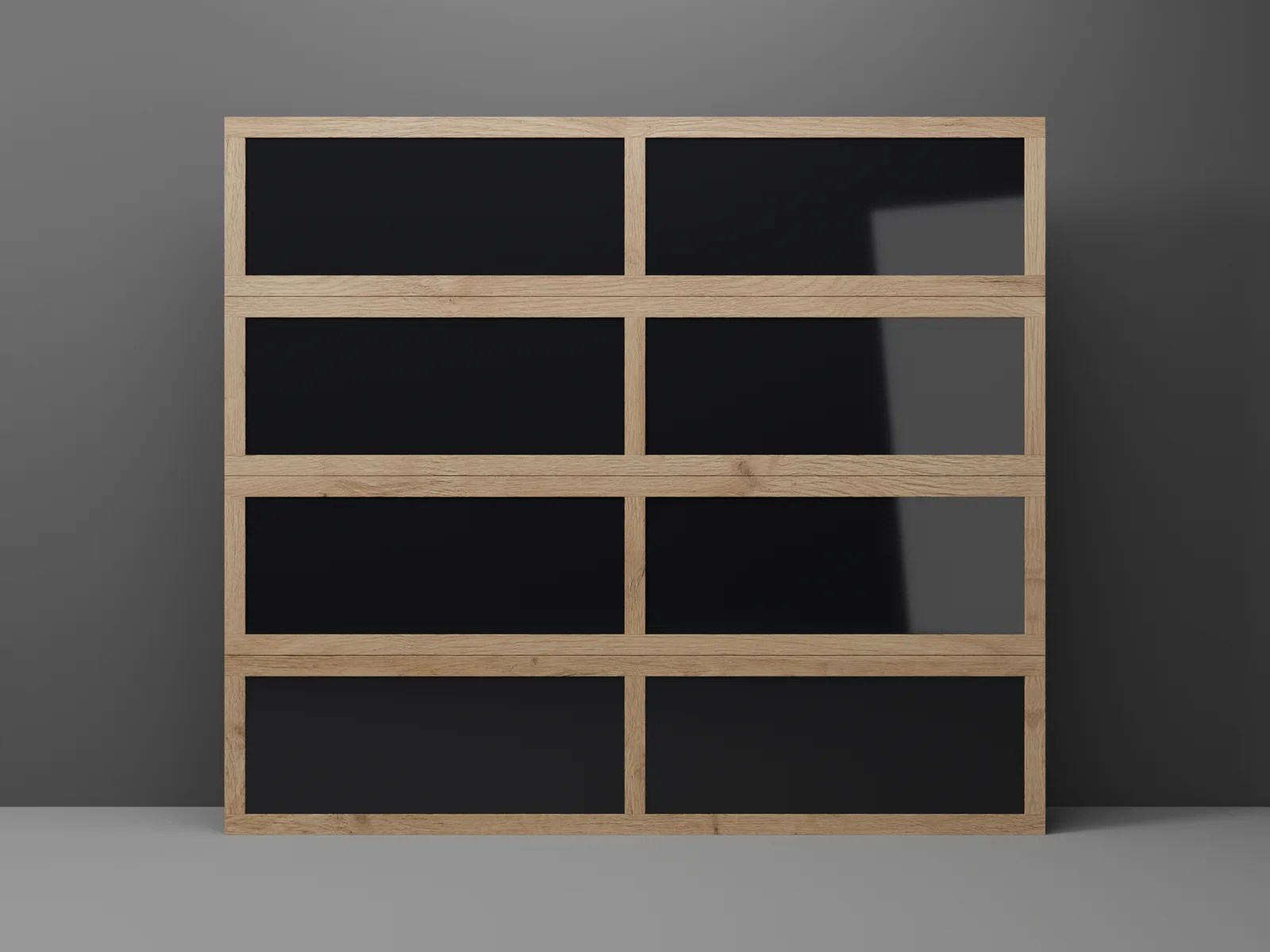

Your door: R-10.25 · 8' x 7' · Natural Oak · All Four Sections
Garage Doors
Aperture by Modern Decor - Full-View Framed Glass Garage Door
Modern Decor Aperture — a wall of dark-tint glass, framed in color-matched aluminum profiles. Glaze every section or a single accent section.
Build code SWR
Need a different size? Sizes to the inch, in between the ones listed, are made to order — ask for a quote.
Black - Erkado matches our Erkado entry doors; Black - MD is our own painted black.
Outside, the glass runs the full panel. Inside we cut only a small window behind it — about 12″ × 40″ — and leave the rest of the section insulated, so the door keeps its insulation instead of trading it away the way an aluminium full-view door does. Choose a row across the door, or a column of windows down one side — or None, which cuts nothing and leaves the inside solid.
Included — interior choices don't change the price.
From inside we add one more layer over the glass — a second pane in effect, though it is not true insulated glass. Tinted doubles the tint, so the glass reads darker from both sides. Frosted keeps people from seeing in at night with the lights on and still lets the daylight through.
Included — interior choices don't change the price.
How to measure
Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.
Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).
A high-lift track runs up the wall before it turns back. Its lift is measured from the top of the opening to the bottom of the horizontal track; it needs headroom of the lift plus 12″, and backroom (measured back from the top of the opening) of your door height less the lift, plus 19″. Each high-lift option works out both from the headroom you enter.
Enter your headroom to see which tracks fit.
Installation & delivery: estimate it in the section below, or when you request pricing or check out — it itemises the estimate from your address and a few questions.
Professional installation (NJ): typically $700 – $2,335, by size and options; your address sets the exact estimate.
Neither button takes a payment or commits you to anything. Add to Cart saves this door so you can add more and send us the whole list. Ask about this door sends us this one door and our team gets back to you.
Financing through Synchrony for qualified customers. Subject to credit approval. Deals can’t be combined with financing. See plans & terms →
Visit the showroom
See our doors in person in Hackensack
Look at the finishes, try the hardware and talk your project through with our team.
390 Hackensack Ave #310Hackensack, NJ 07601
Mon–Sat 11am – 6pm · Sunday closed
The Aperture is our full-view door: ~2.4" profiles and mullions, color-matched to the door rather than defaulting to black.
- Glazing: all four sections, top section, or second from top — all dark tint
- Solid sections: flush color steel, matching the door
- Colors: Natural Oak, Walnut, Swamp Oak, Black - Erkado (Erkado woodgrain steel) or Black - MD (our own black-painted steel)
- Insulation: R-10.25 or R-17.65
- Includes the heavy-duty hardware upgrade the added weight requires
Doors over 9 ft wide (12 ft for our own painted steel) have a vertical seam. Steel skins come in sheets up to 9 ft wide (12 ft for our own painted steel), so a wider door is skinned in more than one sheet. When possible we place seams on a clean break in the design, such as a glass column or a panel line. Seams are subtle but visible, and they are part of the door and of the price shown. The seam drawn in the preview is for visual purposes only — its exact look and position on your door can differ.
This door is a finished insulated steel sectional door with one more layer on its face. The layer is what you see; the door underneath is a complete door.
The door underneath
- R-10.25 — steel, an expanded polystyrene core, steel. Build code SWR.
- R-17.65 — steel, an injected polyurethane core, steel. Build code SWA.
Warranty: covered by the Modern Decor Limited Warranty — Products, section 4 (garage doors we build), on the terms of its build code.
A steel sheet skin on top
On these doors one more layer goes onto the face of the base door: a steel sheet skin, cut and folded to the design.
The door underneath is unchanged. The skin is what you see and what carries the colour, which is why these garage doors can be ordered in the same woodgrain finishes as our steel entry doors.
Where the design has glass, the opening goes through the skin and through the door behind it.
Placeholder diagram
Aperture
Our framed full-view door: roughly 2.4″ profiles and mullions, color-matched to the door rather than defaulting to black. Sections you leave unglazed come in flush color steel that matches the rest of the door.
What you choose
- Glazing: all four sections, the top section, or the second section from the top — all dark tint.
- Insulation: R-10.25 or R-17.65.
- Color: Natural Oak, Walnut, Swamp Oak or Black.
- Size: 8' x 7', 8' x 8', 9' x 7', 9' x 8', 10' x 7', 10' x 8', 12' x 7', 12' x 8', 14' x 7', 14' x 8', 16' x 7' or 16' x 8'.
Construction, insulation, glass and the 9-ft skin rule are in the Construction & Materials tab.
How this door is built
A three-layer insulated steel sectional door, skinned by us in European woodgrain steel (on the Duet and the Wood Band, in the field the composite leaves open) — the same 0.6 mm overlay steel, in the same finishes, as our European steel entry doors. That is the point of the line: the garage door and the front door can be ordered in one finish and read as one elevation.
Insulation and sections
- Insulation: R-10.25 or R-17.65.
- Sections: four per door — 21″ each on a 7-ft door and 24″ on an 8-ft door; a 6′ 6″ or 6′ 9″ door, on the lines that sell one, has 18″ sections at the top (18 / 18 / 21 / 21″ and 18 / 21 / 21 / 21″, top first); a 9′ door, on the lines that sell one, is five sections — four of 21″ and one of 24″ (21 / 21 / 21 / 21 / 24″, top first).
Colors
Natural Oak, Walnut, Swamp Oak and Black — matched to our steel entry doors.
Glass
The Duet and the Wood Band carry no glass at all. Everywhere else on these lines glazing is dark tint throughout. The glass is never sunk below the steel: on a flush design the pane sits marginally proud of the skin, and on a framed design it is held behind the frame face like a window. Where two lites meet you will see a fine joint line rather than one continuous sheet.
Doors wider than 9 feet
Our steel skins come up to 9 ft wide, so every door wider than that carries a vertical seam in the skin. It is placed deliberately — at a glass edge or another natural break in the design — never dropped into the middle of a plain field.
Sizes
This door is offered in 8' x 7', 8' x 8', 9' x 7', 9' x 8', 10' x 7', 10' x 8', 12' x 7', 12' x 8', 14' x 7', 14' x 8', 16' x 7' or 16' x 8'.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.

Below are specifications of all Garage Door Motor Options





LM L979M WIRELESS KEYPAD MAX:
- Compatible with most major brands of Garage Door Openers manufactured after January 1997.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (PIN codes, set schedules, notifications, access history and battery status) with Security+ 3.0 Garage Door Openers.
- Users can program temporary PIN codes for friends and service people.
- Closes the Garage Door instantly with one press activation
LM 878 Max Wireless Keypad
- Features Security+ 2.0® rolling code technology
- One-button-to-close feature (works with all LiftMaster garage door openers manufactured since 2006)
- Temporary password option, Program code directly from keypad
- Backlit keypad, Includes 9V battery
- Compatible with all LiftMaster garage door openers manufactured since January 1993
KSWKP WIRELESS KEYPAD KWIKSET
- Compatible with Kwikset FLEX openers
- Open or close the garage door without using a remote
- Includes 9V battery
LM 893 Max 3-Button Remote Control
- Controls up to three garage door openers, gates or myQ® enabled light devices
- Features Security+2.0 rolling code technology
- Compatible with all LiftMaster garage door openers manufactured since January 1993, and all 315MHz LiftMaster and ELITE gate operators
LM L932M 2 BUTTON KEYCHAIN MAX
- Compatible with up to three Garage Door Openers, Gate Operators, or Commercial Door Operators manufactured by LiftMaster after 1997.
- Extra-long range for extended reach and reliable operation.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (naming, notifications and access history) with Security+ 3.0 and Security+ 2.0 Garage Door Openers.
- Fits on a keychain, backpack or in a purse or pocket
KSTX3 FLEX REMOTE 3 BUTTON
- Compatible with Kwikset FLEX openers
- Controls up to three Garage doors
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
KSTX1 FLEX REMOTE 1 BUTTON
- Compatible with Kwikset FLEX openers
- Controls one garage door
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
Installation
Every Modern Decor garage door can be installed by our own crews. Under the door price, this page shows what installing the door typically costs — from a new opening to replacing an old door with removal, haul-away and trim. Choose Installation when you request pricing and the quote form itemises an estimate for your opening — the installation, the opener, special tracks, weather strip, trim and travel from your address — and takes photos of the opening. Our team confirms it with you before scheduling.
The whole job, priced up front. Taking out your old door, hauling it away, trim, weather strip and travel are all on that estimate, line by line, and nothing is added on install day without your OK. The one thing nobody can price before the old door is out is hidden damage, like a rotted jamb: if we find it, it has to be repaired before the new door can go in — a door can't be hung on a rotted jamb. We show you the damage and price the repair with you on the spot before we do it.
Sold and installed by Modern Decor Supply LLC, NJ Home Improvement Contractor Reg. #13VH13488900, from our Hackensack, NJ showroom — serving New Jersey, New York, Pennsylvania and Connecticut.
Before you order
- Measure the opening, not the old door. The How to Measure Garage Opening tab shows exactly what to measure.
- Check your headroom and jambs. Track and headroom options — standard radius, low-headroom, high-lift, vertical-lift and follow-the-roof-pitch — are chosen in the configurator above, and each option states the headroom it needs.
- High-lift, in plain numbers. A high-lift track runs up the wall before it turns back; its lift is measured from the top of the opening to the bottom of the horizontal track. It needs headroom of the lift plus 12″, and backroom — measured back from the top of the opening — of the door height less the lift, plus 19″. A 7-ft door with 28″ of lift needs 40″ of headroom and 75″ of backroom. Enter your headroom in the configurator and each high-lift option shows the lift it would be built with, and the headroom and backroom that lift needs.
- Decide on the opener while you are there: motors, keypads and remotes are all priced with the door, and the opener's installation is a line of its own in the installation estimate.
Lead time
These doors are made to order. The production time for your exact configuration is given in writing with your quote, as an estimate, not a promised date — ask us and we will tell you what we are running the week you order, rather than publishing a number that drifts.
