Your door: R-10.25 · 8' x 7' · Natural Oak · 12 in · Single column
Garage Doors

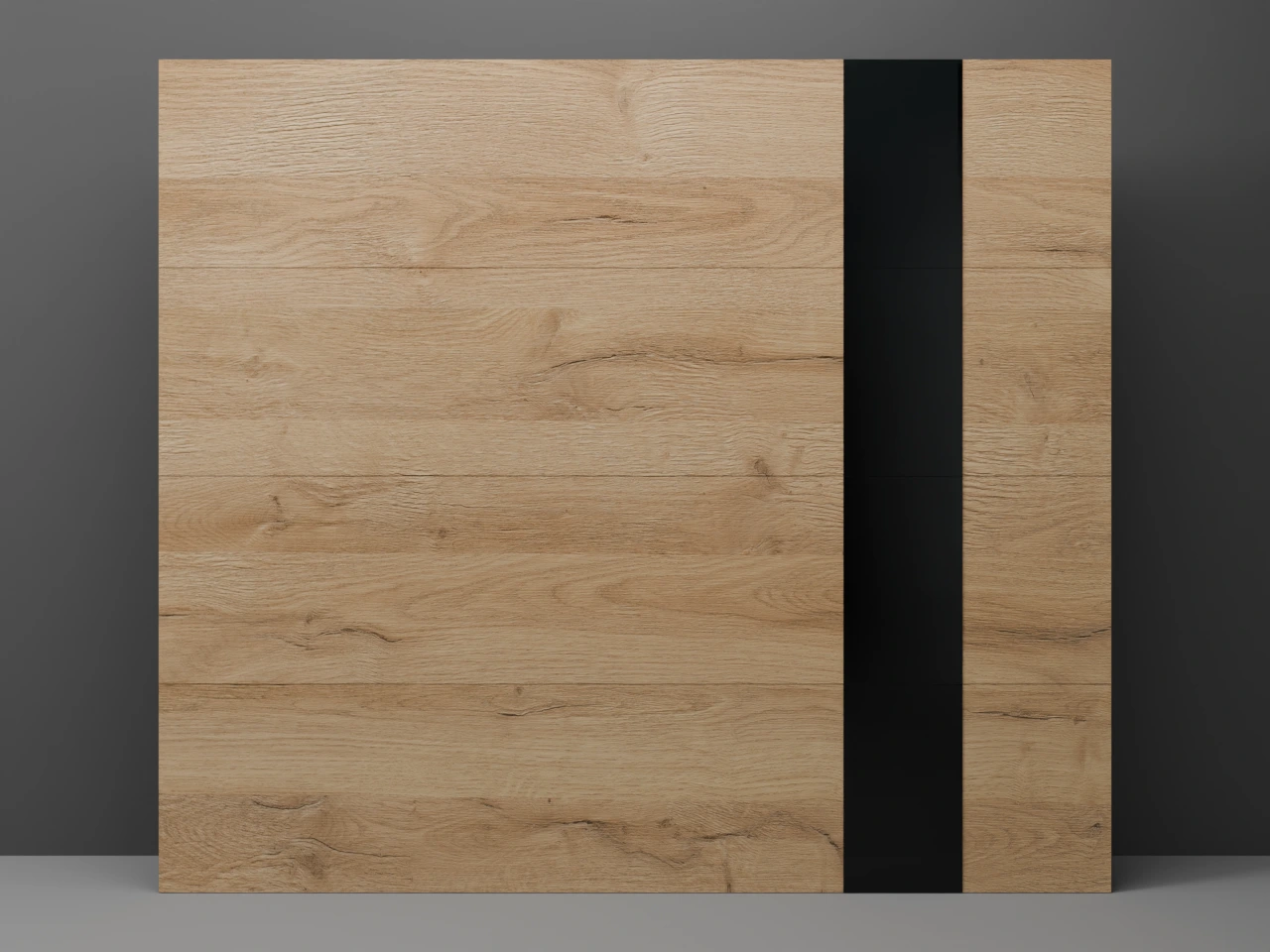

Axis by Modern Decor - Vertical Glass Steel Garage Door
Modern Decor Axis — a flush woodgrain field broken by a full-height column of dark-tint glass. One column, or both sides on 16-ft doors. Insulated to R-10.25 or R-17.65.
How to measure
Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.
Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).
Enter your headroom to see which tracks fit.
Financing available through Synchrony Bank · Promotional/sale-priced items are not eligible for financing. Learn more →
The Axis puts one uninterrupted vertical line of dark glass through a flush woodgrain door. The glass runs the full height in four pieces — one per section — and sits close to the edge so the field beside it reads as a single plane.
- Glass: 12" or 17" wide dark-tint column, full height, 4 pieces (8 on a double-sided 16-ft)
- Colors: Natural Oak, Walnut, Swamp Oak, Black
- Insulation: R-10.25 or R-17.65
- Sizes: 8x7, 8x8, 9x7, 9x8, 16x7, 16x8 — double-sided glass on 16-ft
Axis
One uninterrupted vertical line of dark glass through a flush woodgrain door. The glass runs full height in four pieces — one per section — and sits close to the edge so the field beside it reads as a single plane.
What you choose
- Glass width: 12″ or 17″.
- Glass layout: a single column, or double-sided on a 16-ft door (8 pieces).
- Insulation: R-10.25 or R-17.65.
- Color: Natural Oak, Walnut, Swamp Oak or Black.
- Size: 8×7, 8×8, 9×7, 9×8, 16×7 or 16×8.
Construction, insulation, glass and the 9-ft skin rule are in the Construction & Materials tab.
How this door is built
A three-layer insulated steel sectional door, skinned by us in European woodgrain steel (on the Duet and the Wood Band, in the field the composite leaves open) — the same 0.6 mm overlay steel, in the same finishes, as our European steel entry doors. That is the point of the line: the garage door and the front door can be ordered in one finish and read as one elevation.
Insulation and sections
- Insulation: R-10.25 or R-17.65.
- Sections: four per door — 21″ on a 7-ft door, 24″ on an 8-ft door.
Colors
Natural Oak, Walnut, Swamp Oak and Black — matched to our steel entry doors.
Glass
The Duet and the Wood Band carry no glass at all. Everywhere else on these lines glazing is dark tint throughout. The glass is never sunk below the steel: on a flush design the pane sits marginally proud of the skin, and on a framed design it is held behind the frame face like a window. Where two lites meet you will see a fine joint line rather than one continuous sheet.
Doors wider than 9 feet
Our steel skins come up to 9 ft wide, so a 16-ft door carries a vertical seam in the skin. It is placed deliberately — at a glass edge or another natural break in the design — never dropped into the middle of a plain field.
Sizes
8×7, 8×8, 9×7, 9×8, 16×7 and 16×8.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.
Below are specifications of all Garage Door Motor Options
LM L979M WIRELESS KEYPAD MAX:
- Compatible with most major brands of Garage Door Openers manufactured after January 1997.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (PIN codes, set schedules, notifications, access history and battery status) with Security+ 3.0 Garage Door Openers.
- Users can program temporary PIN codes for friends and service people.
- Closes the Garage Door instantly with one press activation
LM 878 Max Wireless Keypad
- Features Security+ 2.0® rolling code technology
- One-button-to-close feature (works with all LiftMaster garage door openers manufactured since 2006)
- Temporary password option, Program code directly from keypad
- Backlit keypad, Includes 9V battery
- Compatible with all LiftMaster garage door openers manufactured since January 1993
KSWKP WIRELESS KEYPAD KWIKSET
- Compatible with Kwikset FLEX openers
- Open or close the garage door without using a remote
- Includes 9V battery
LM 893 Max 3-Button Remote Control
- Controls up to three garage door openers, gates or myQ® enabled light devices
- Features Security+2.0 rolling code technology
- Compatible with all LiftMaster garage door openers manufactured since January 1993, and all 315MHz LiftMaster and ELITE gate operators
LM L932M 2 BUTTON KEYCHAIN MAX
- Compatible with up to three Garage Door Openers, Gate Operators, or Commercial Door Operators manufactured by LiftMaster after 1997.
- Extra-long range for extended reach and reliable operation.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (naming, notifications and access history) with Security+ 3.0 and Security+ 2.0 Garage Door Openers.
- Fits on a keychain, backpack or in a purse or pocket
KSTX3 FLEX REMOTE 3 BUTTON
- Compatible with Kwikset FLEX openers
- Controls up to three Garage doors
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
KSTX1 FLEX REMOTE 1 BUTTON
- Compatible with Kwikset FLEX openers
- Controls one garage door
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
Installation
Every Modern Decor garage door can be installed by our own crews. Installation is quoted separately and is never included in a listed price — the price on this page is for the door as configured, and your written quote itemises the rest.
Sold and installed by Modern Decor Supply LLC, NJ Home Improvement Contractor Reg. #13VH13488900, from our Hackensack, NJ showroom — serving New Jersey, New York, Pennsylvania and Connecticut.
Before you order
- Measure the opening, not the old door. The How to Measure Garage Opening tab shows exactly what to measure.
- Check your headroom and jambs. Track and headroom options — standard radius, low-headroom, high-lift, vertical-lift and follow-the-roof-pitch — are chosen in the configurator above, and each option states the headroom it needs.
- Decide on the opener while you are there: motors, keypads and remotes are all quoted with the door.
Lead time
These doors are made to order. The production time for your exact configuration is confirmed in writing with your quote — ask us and we will tell you what we are running the week you order, rather than publishing a number that drifts.
