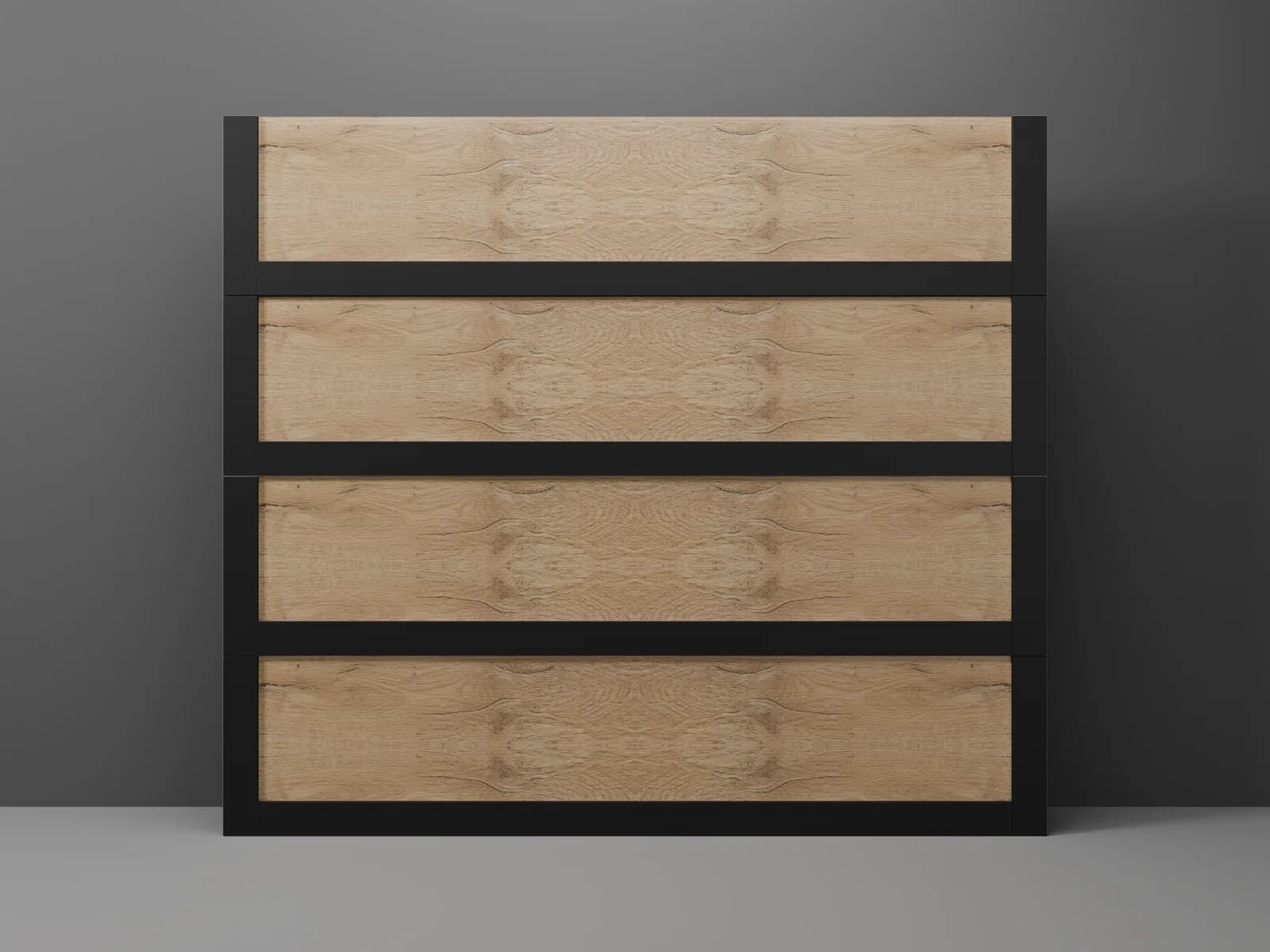

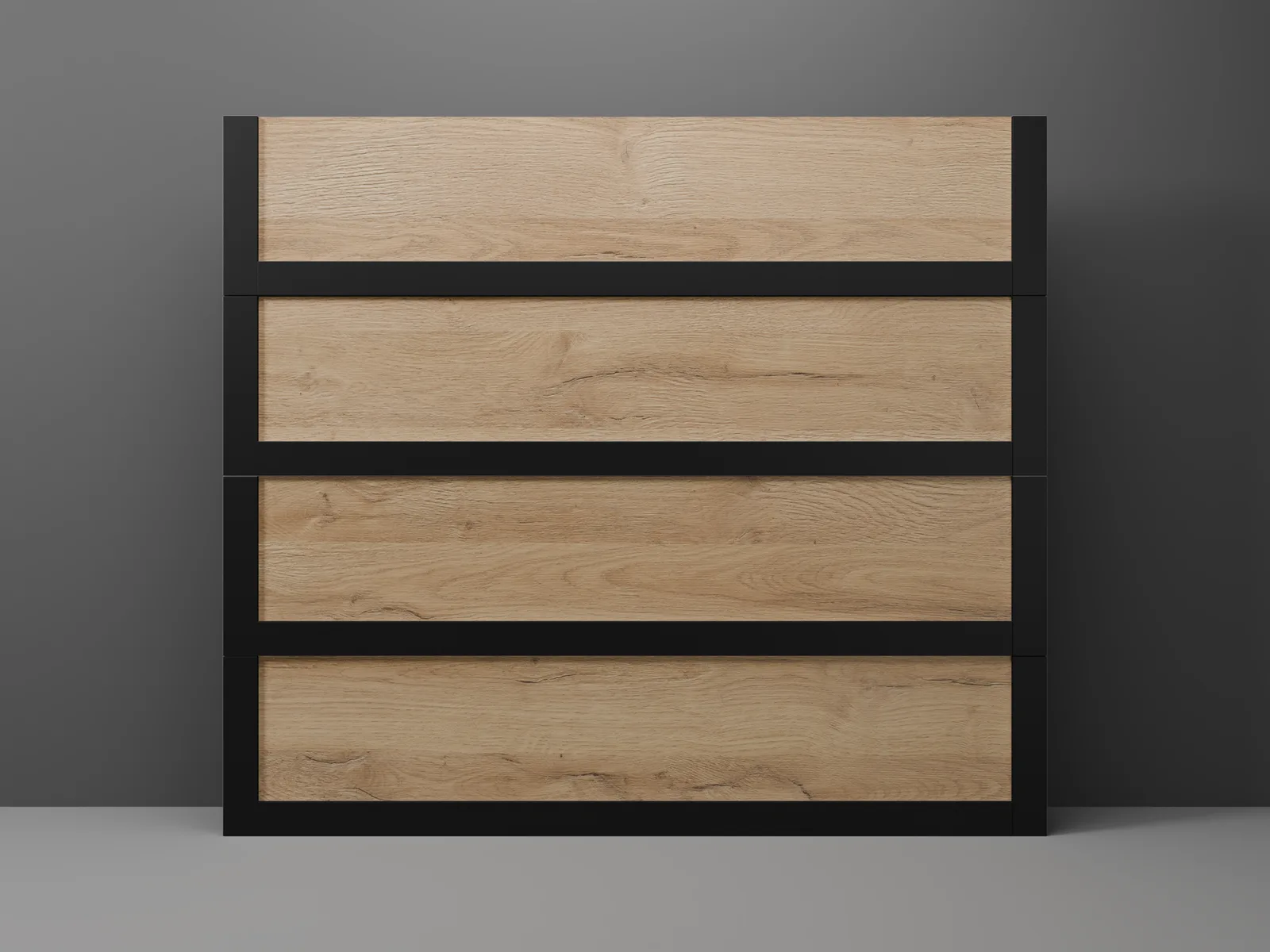

Your door: R-10.25 · 8' x 7' · Natural Oak · BLX Black · Open band
Garage Doors
Wood Band by Modern Decor - Woodgrain Inlay Aluminum Composite (ACM) Garage Door
Modern Decor Wood Band — a black aluminium composite frame around a band of European woodgrain steel in every section. The smoked-glass layout with wood in place of the glass. Insulated to R-10.25 or R-17.65.
Build code SWR
Need a different size? Sizes to the inch, in between the ones listed, are made to order — ask for a quote.
Black - Erkado matches our Erkado entry doors; Black - MD is our own painted black.
How to measure
Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.
Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).
A high-lift track runs up the wall before it turns back. Its lift is measured from the top of the opening to the bottom of the horizontal track; it needs headroom of the lift plus 12″, and backroom (measured back from the top of the opening) of your door height less the lift, plus 19″. Each high-lift option works out both from the headroom you enter.
Enter your headroom to see which tracks fit.
Installation & delivery: estimate it in the section below, or when you request pricing or check out — it itemises the estimate from your address and a few questions.
Professional installation (NJ): typically $700 – $2,482, by size and options; your address sets the exact estimate.
Neither button takes a payment or commits you to anything. Add to Cart saves this door so you can add more and send us the whole list. Ask about this door sends us this one door and our team gets back to you.
Financing through Synchrony for qualified customers. Subject to credit approval. Deals can’t be combined with financing. See plans & terms →
Visit the showroom
See our doors in person in Hackensack
Look at the finishes, try the hardware and talk your project through with our team.
390 Hackensack Ave #310Hackensack, NJ 07601
Mon–Sat 11am – 6pm · Sunday closed
The Wood Band takes the smoked-glass composition and swaps the dark tint for wood: 4" black composite side frames and a 4" band along the foot of every section, with European woodgrain steel filling the opening above. One band to a section — four, or five on a 9-ft-tall door — the grain runs the width of the door and the composite holds it like a picture frame.
- Layout: open band, or closed with a 4" composite rail across the very top of the door
- Band height: 17" in a 7-ft door's 21" sections, 20" in an 8-ft door's 24" sections; the closed layout's rail shortens the top band alone, to 13" or 16". A 6′6″ or 6′9″ door carries its short 18" sections at the top, so its upper bands are 14" (10" under the closed rail) over 17" bands below; a 9′ door has a 20" band in its 24" bottom section under four 17" bands (13" at the head under the closed rail)
- Band: Erkado woodgrain steel — Natural Oak, Walnut, Swamp Oak or Black - Erkado — or our own black-painted steel (Black - MD)
- Composite: 4 mm aluminium composite panel (ACM) in BLX Black, routed and folded, 5/8" proud of the door face
- Doors over 9 ft wide carry a 4" composite divider at the centre, so each band is a single sheet of woodgrain rather than a seam in open field
- Base door: insulated steel, R-10.25 or R-17.65
- Sizes: 8x6′6″, 8x6′9″, 8x7, 8x8, 8x9, 9x6′6″, 9x6′9″, 9x7, 9x8, 9x9, 10x6′6″, 10x6′9″, 10x7, 10x8, 10x9, 12x6′6″, 12x6′9″, 12x7, 12x8, 12x9, 14x6′6″, 14x6′9″, 14x7, 14x8, 14x9, 16x6′6″, 16x6′9″, 16x7, 16x8, 16x9
- Includes the heavy-duty hardware upgrade the added panel weight requires
Every combination carries an exact door price. Each door, 6′6″ to 8′ tall, is pictured one finish pairing at a time — not one picture recoloured.
Doors over 9 ft wide (12 ft for our own painted steel) have a vertical seam. Steel skins come in sheets up to 9 ft wide (12 ft for our own painted steel), so a wider door is skinned in more than one sheet. When possible we place seams on a clean break in the design, such as a glass column or a panel line. Seams are subtle but visible, and they are part of the door and of the price shown. The seam drawn in the preview is for visual purposes only — its exact look and position on your door can differ.
This door is a finished insulated steel sectional door carrying two of our materials on its face, side by side. Those materials are what you see; the door underneath is a complete door.
The door underneath
- R-10.25 — steel, an expanded polystyrene core, steel. Build code SWR.
- R-17.65 — steel, an injected polyurethane core, steel. Build code SWA.
Warranty: covered by the Modern Decor Limited Warranty — Products, section 4 (garage doors we build), on the terms of its build code.
Both materials, side by side
These two doors wear both of our materials on one face — but beside each other, not one on top of the other.
The steel sheet skin goes on only where it stays visible: the field the composite leaves open. The aluminium composite panels sit directly on the base door next to it, with no steel sheet underneath them. Each material has its own part of the face, and the base door is what both of them are on.
Neither of these designs carries glass today — the drawing is done entirely in the two materials.
Placeholder diagram
Wood Band — a woodgrain inlay in a composite frame
Our smoked-glass composition with wood where the glass would be. Every section is framed in black aluminium composite — 4″ up each side and a 4″ band along the foot — and the opening above it is filled with European woodgrain steel. Four sections, four bands of grain running the width of the door.
The two layouts
- Open band — side frames and a bottom band only, so each band of woodgrain runs up to the section joint above it.
- Closed band — a 4″ composite rail across the very top of each section as well, which closes the framing on all four sides.
Band height
Each band is its section less the 4″ foot band — and less the 4″ top rail as well on a closed band — so it follows the section it sits in:
- 24″ sections (8′ and 9′ doors): 20″ of woodgrain, or 16″ with the top rail.
- 21″ sections (6′ 6″, 6′ 9″, 7′ and 9′ doors): 17″ of woodgrain, or 13″ with the top rail.
- 18″ sections (6′ 6″ and 6′ 9″ doors): 14″ of woodgrain, or 10″ with the top rail.
What you choose
- Woodgrain color: Natural Oak, Walnut, Swamp Oak or Black — the same finishes as our steel entry doors.
- Composite color: BLX Black.
- Layout: open band or closed band.
- Insulation: R-10.25 or R-17.65.
- Size: 8' x 6' 6", 8' x 6' 9", 8' x 7', 8' x 8', 8' x 9', 9' x 6' 6", 9' x 6' 9", 9' x 7', 9' x 8', 9' x 9', 10' x 6' 6", 10' x 6' 9", 10' x 7', 10' x 8', 10' x 9', 12' x 6' 6", 12' x 6' 9", 12' x 7', 12' x 8', 12' x 9', 14' x 6' 6", 14' x 6' 9", 14' x 7', 14' x 8', 14' x 9', 16' x 6' 6", 16' x 6' 9", 16' x 7', 16' x 8' or 16' x 9'.
Doors wider than 9 feet
Our woodgrain steel comes up to 9 ft wide, so a wider band cannot be one sheet. Rather than drop a seam into open grain, the door carries a 4″ composite divider at the centre of every section and each half of the band is a single sheet — no divider on an 8 or 9-ft door and one on a 10, 12, 14 or 16-ft.
Glass
None. The Wood Band is the wood version of the layout; the glazed version of the same idea is the Onyx.
Photography
Every combination is photographed — one front for each woodgrain finish at each size, with the band open and closed — so the choice you make is the door you see.
The composite frame is described in the Construction & Materials tab; the woodgrain skin is in Woodgrain Steel Skin.
How an ACM door is built
An ACM door starts as a real insulated steel sectional door and is clad in 4 mm aluminium composite panel (ACM). Every face is routed and folded from a single sheet, so the panel you see has no applied edge trim, and it stands 5/8″ proud of the door face. The leaf is four sections of 2″ thickness, and the section joints stay visible as they do on any sectional door — the pattern is applied to a door, not printed on a slab.
Base door and insulation
- Base: insulated steel sectional door, R-10.25 or R-17.65.
- Hardware: the heavy-duty hardware upgrade the added panel weight requires is included.
- Sections: four per door — 21″ each on a 7-ft door and 24″ on an 8-ft door; a 6′ 6″ or 6′ 9″ door, on the lines that sell one, has 18″ sections at the top (18 / 18 / 21 / 21″ and 18 / 21 / 21 / 21″, top first); a 9′ door, on the lines that sell one, is five sections — four of 21″ and one of 24″ (21 / 21 / 21 / 21 / 24″, top first).
Colors
ACM is its own finish family: composite is never finished in the woodgrain steel colors, and steel is never finished in the composite ones. On the two hybrid doors — the Duet and the Wood Band — both materials sit on the same leaf, and each keeps its own palette.
- BLX Black
- MRO Anthracite Grey
- Mica Grey
- BSX Metallic Silver
- SAW White
Glass
Glazed ACM designs use 3 mm dark tint glass, recessed to the base plane so the ACM stays the outermost surface. Panes are used at their stock cut sizes and are never re-cut to fit a layout — where a width will not divide exactly, the design absorbs it in the ACM, not in the glass.
Panel gaps and proportion
The reveal between panels runs 3/8″, 1/2″, 3/4″ or 1″. It is chosen by the layout for the proportion of your door rather than offered as a separate choice, which is also why panel widths within a design are not always equal.
Sizes
This door is offered in 8' x 6' 6", 8' x 6' 9", 8' x 7', 8' x 8', 8' x 9', 9' x 6' 6", 9' x 6' 9", 9' x 7', 9' x 8', 9' x 9', 10' x 6' 6", 10' x 6' 9", 10' x 7', 10' x 8', 10' x 9', 12' x 6' 6", 12' x 6' 9", 12' x 7', 12' x 8', 12' x 9', 14' x 6' 6", 14' x 6' 9", 14' x 7', 14' x 8', 14' x 9', 16' x 6' 6", 16' x 6' 9", 16' x 7', 16' x 8' or 16' x 9'. The sizes follow the design rather than the material, so each ACM line has its own list — it is repeated under Model Specifications, and the configurator's size chips offer exactly the same doors.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.
How this door is built
A three-layer insulated steel sectional door, skinned by us in European woodgrain steel (on the Duet and the Wood Band, in the field the composite leaves open) — the same 0.6 mm overlay steel, in the same finishes, as our European steel entry doors. That is the point of the line: the garage door and the front door can be ordered in one finish and read as one elevation.
Insulation and sections
- Insulation: R-10.25 or R-17.65.
- Sections: four per door — 21″ each on a 7-ft door and 24″ on an 8-ft door; a 6′ 6″ or 6′ 9″ door, on the lines that sell one, has 18″ sections at the top (18 / 18 / 21 / 21″ and 18 / 21 / 21 / 21″, top first); a 9′ door, on the lines that sell one, is five sections — four of 21″ and one of 24″ (21 / 21 / 21 / 21 / 24″, top first).
Colors
Natural Oak, Walnut, Swamp Oak and Black — matched to our steel entry doors.
Glass
The Duet and the Wood Band carry no glass at all. Everywhere else on these lines glazing is dark tint throughout. The glass is never sunk below the steel: on a flush design the pane sits marginally proud of the skin, and on a framed design it is held behind the frame face like a window. Where two lites meet you will see a fine joint line rather than one continuous sheet.
Doors wider than 9 feet
Our steel skins come up to 9 ft wide, so every door wider than that carries a vertical seam in the skin. It is placed deliberately — at a glass edge or another natural break in the design — never dropped into the middle of a plain field.
Sizes
This door is offered in 8' x 6' 6", 8' x 6' 9", 8' x 7', 8' x 8', 8' x 9', 9' x 6' 6", 9' x 6' 9", 9' x 7', 9' x 8', 9' x 9', 10' x 6' 6", 10' x 6' 9", 10' x 7', 10' x 8', 10' x 9', 12' x 6' 6", 12' x 6' 9", 12' x 7', 12' x 8', 12' x 9', 14' x 6' 6", 14' x 6' 9", 14' x 7', 14' x 8', 14' x 9', 16' x 6' 6", 16' x 6' 9", 16' x 7', 16' x 8' or 16' x 9'.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.

Below are specifications of all Garage Door Motor Options





LM L979M WIRELESS KEYPAD MAX:
- Compatible with most major brands of Garage Door Openers manufactured after January 1997.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (PIN codes, set schedules, notifications, access history and battery status) with Security+ 3.0 Garage Door Openers.
- Users can program temporary PIN codes for friends and service people.
- Closes the Garage Door instantly with one press activation
LM 878 Max Wireless Keypad
- Features Security+ 2.0® rolling code technology
- One-button-to-close feature (works with all LiftMaster garage door openers manufactured since 2006)
- Temporary password option, Program code directly from keypad
- Backlit keypad, Includes 9V battery
- Compatible with all LiftMaster garage door openers manufactured since January 1993
KSWKP WIRELESS KEYPAD KWIKSET
- Compatible with Kwikset FLEX openers
- Open or close the garage door without using a remote
- Includes 9V battery
LM 893 Max 3-Button Remote Control
- Controls up to three garage door openers, gates or myQ® enabled light devices
- Features Security+2.0 rolling code technology
- Compatible with all LiftMaster garage door openers manufactured since January 1993, and all 315MHz LiftMaster and ELITE gate operators
LM L932M 2 BUTTON KEYCHAIN MAX
- Compatible with up to three Garage Door Openers, Gate Operators, or Commercial Door Operators manufactured by LiftMaster after 1997.
- Extra-long range for extended reach and reliable operation.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (naming, notifications and access history) with Security+ 3.0 and Security+ 2.0 Garage Door Openers.
- Fits on a keychain, backpack or in a purse or pocket
KSTX3 FLEX REMOTE 3 BUTTON
- Compatible with Kwikset FLEX openers
- Controls up to three Garage doors
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
KSTX1 FLEX REMOTE 1 BUTTON
- Compatible with Kwikset FLEX openers
- Controls one garage door
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
Installation
Every Modern Decor garage door can be installed by our own crews. Under the door price, this page shows what installing the door typically costs — from a new opening to replacing an old door with removal, haul-away and trim. Choose Installation when you request pricing and the quote form itemises an estimate for your opening — the installation, the opener, special tracks, weather strip, trim and travel from your address — and takes photos of the opening. Our team confirms it with you before scheduling.
The whole job, priced up front. Taking out your old door, hauling it away, trim, weather strip and travel are all on that estimate, line by line, and nothing is added on install day without your OK. The one thing nobody can price before the old door is out is hidden damage, like a rotted jamb: if we find it, it has to be repaired before the new door can go in — a door can't be hung on a rotted jamb. We show you the damage and price the repair with you on the spot before we do it.
Sold and installed by Modern Decor Supply LLC, NJ Home Improvement Contractor Reg. #13VH13488900, from our Hackensack, NJ showroom — serving New Jersey, New York, Pennsylvania and Connecticut.
Before you order
- Measure the opening, not the old door. The How to Measure Garage Opening tab shows exactly what to measure.
- Check your headroom and jambs. Track and headroom options — standard radius, low-headroom, high-lift, vertical-lift and follow-the-roof-pitch — are chosen in the configurator above, and each option states the headroom it needs.
- High-lift, in plain numbers. A high-lift track runs up the wall before it turns back; its lift is measured from the top of the opening to the bottom of the horizontal track. It needs headroom of the lift plus 12″, and backroom — measured back from the top of the opening — of the door height less the lift, plus 19″. A 7-ft door with 28″ of lift needs 40″ of headroom and 75″ of backroom. Enter your headroom in the configurator and each high-lift option shows the lift it would be built with, and the headroom and backroom that lift needs.
- Decide on the opener while you are there: motors, keypads and remotes are all priced with the door, and the opener's installation is a line of its own in the installation estimate.
Lead time
These doors are made to order. The production time for your exact configuration is given in writing with your quote, as an estimate, not a promised date — ask us and we will tell you what we are running the week you order, rather than publishing a number that drifts.
